NET-ZERO
BESS - ESU50
Battery Energy Storage System
Power up remote mine, construction, and industrial sites with our 50KW/75kWh, 3-phase mobile battery storage units (ESU50). These battery storage units can be used in conjunction with solar, grid or generators input and are designed to provide AC power for a variety of temporary and long-term applications.

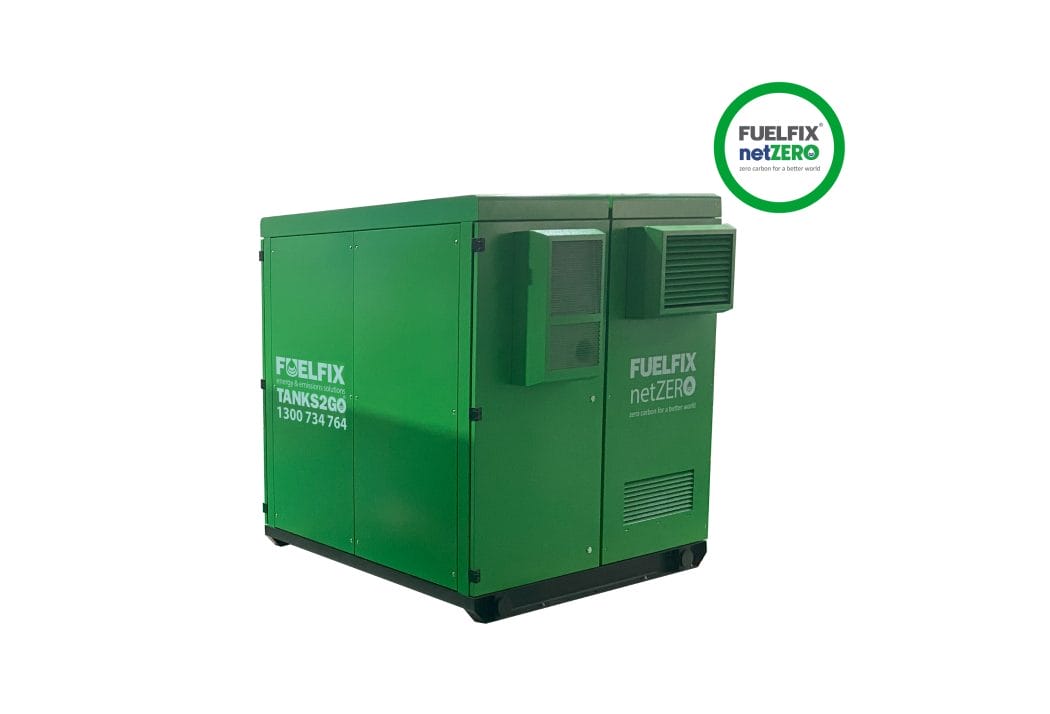

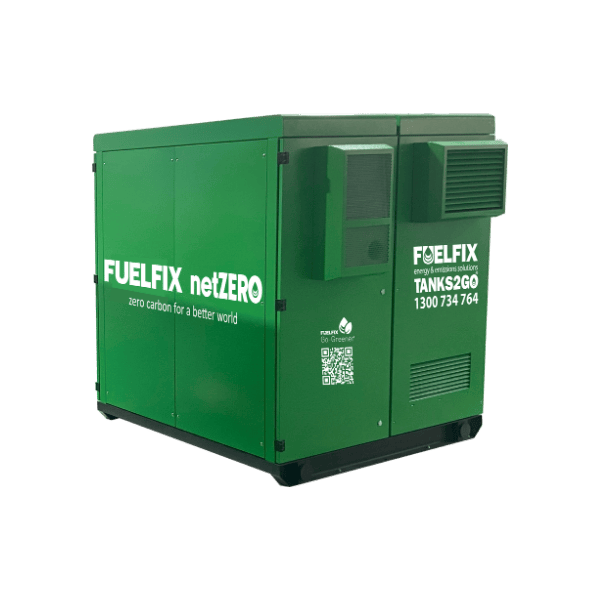

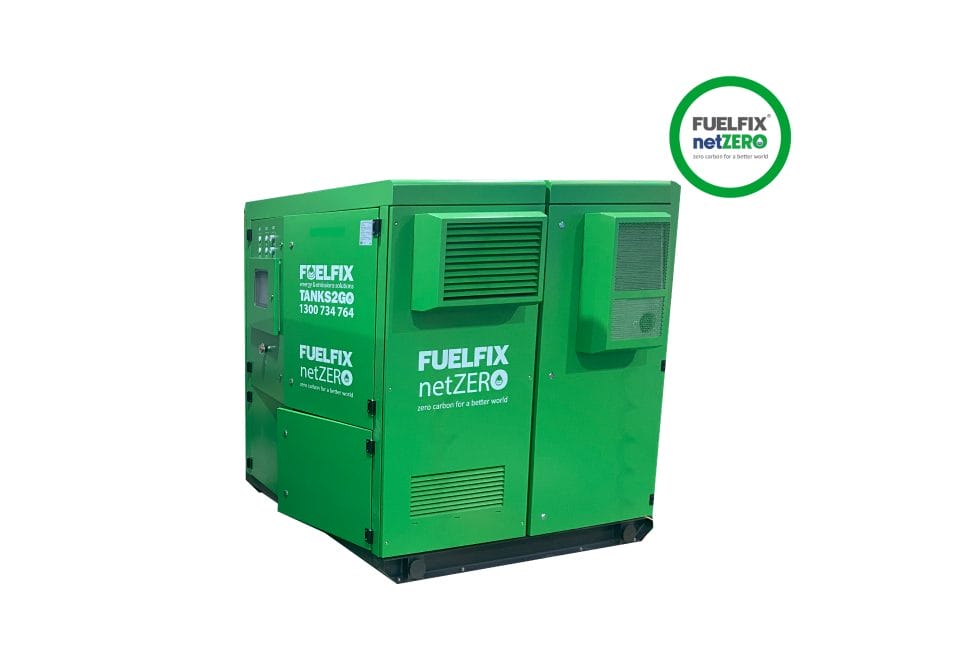

3-Phase Mobile AC Battery Storage ESU50
- Zero emissions and silent operation
- Modular, scalable and portable
- Reduced maintenance and operational costs
Product Features
- Highly-efficient: The ESU50 is chargeable through solar skid, grid or generator input and the 75kWh battery will recharge in 1.5 hours (fast charging).
- Durable: The IP54 rated aluminium enclosure is designed to withstand harsh Australian weather conditions.
- Zero Emissions: The long-lasting lithium ferrous phosphate (LiFePO4) battery technology produces zero noise and air pollution.
- Smart features: Remote fleet management through online portal, live monitoring with built in 4G modem, bluetooth App, live updates on battery state.
- Ease of Transport: The compact shape with forklift pockets, tie down and lifting points allows safe and easy handling.
- Connect with solar input: A true netZERO solution combining a battery energy storage with Fuelfix solar skid and cutting reliance on fossil fuel-based sources and ongoing operational costs.
Product Specification
Voltage
415v AC
Lifting
Fork Pockets & Tie/Lifting points
Output Power
50KW continuous load at 25°C
Battery Voltage
51.2V DC - 15 off battery modules are connected in series
Battery Capacity
76.8kWh
Battery Type
Lithium Iron Phosphate
Recharge Time
1.5 hours fast charging
Height
1,700mm
Width
1,500mm
Length
1,680mm
1,395 kg
CASE STUDY
Fuelfix BESS in Action
NRW Civil & Mining contacted Fuelfix with an essential project requirement for a remote iron ore mine site in Newman. They needed an efficient and reliable refuelling solution meeting stringent operational standards.
Fuelfix designed a hybrid solution incorporating a Battery Energy Storage System (BESS) with a diesel generator.
Providing essential power for the Perth Karla Bidi Festival
Swan River, WAInspired by the Noongar tradition of lighting fires to greet and guide visitors, Karla Bidi, meaning Fire Trail, is a series of large-scale sculptures placed along the Swan River lighting up at night, each accompanied by a hypnotic soundscape.
Fuelfix introduced its hybrid generators, BESS and solar energy solutions to provide essential power for the sculpture during the Festival.
