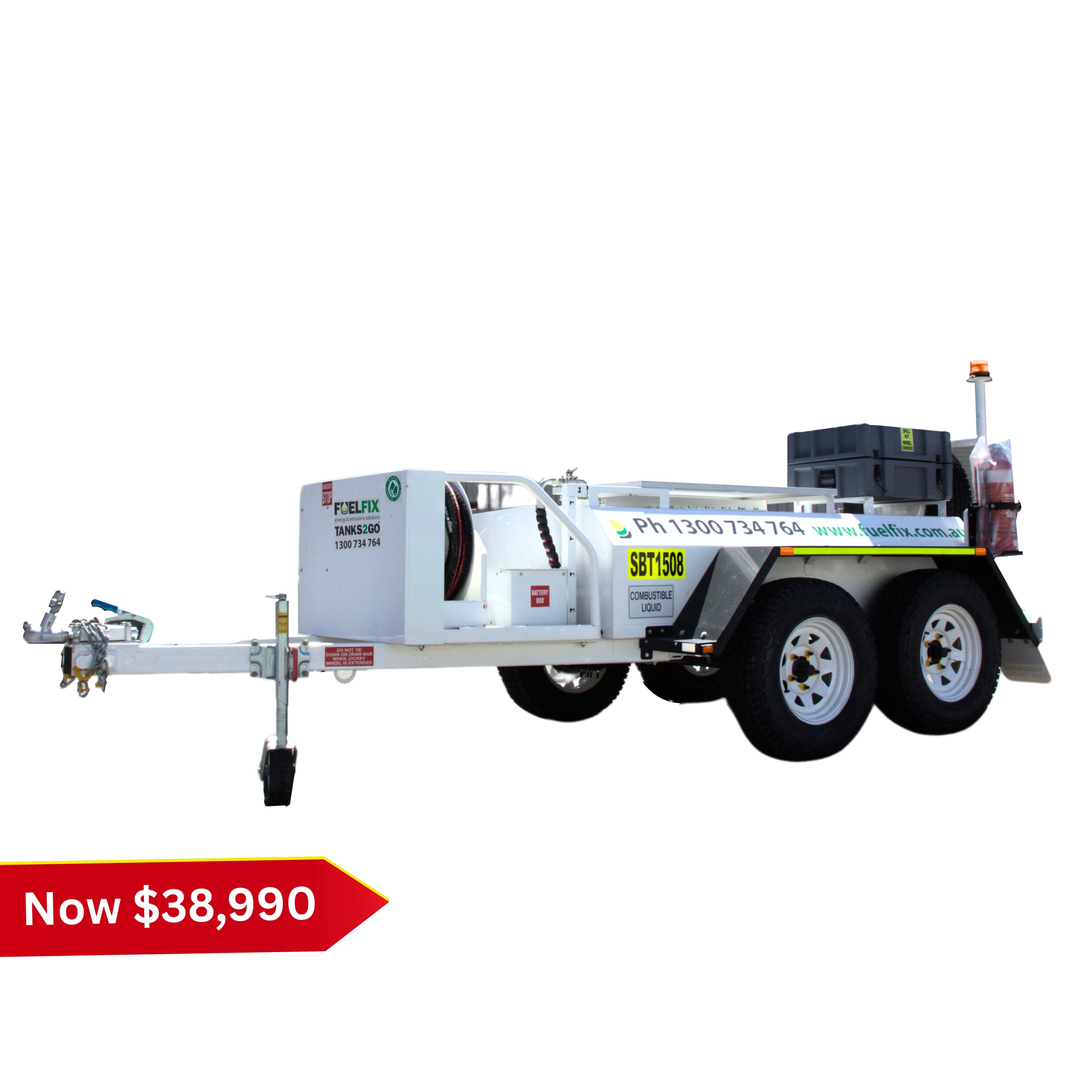

1200 Litre Solar-Powered Fuel Trailer

Description

Adding a solar panel and 12V pump to our fuel trailer takes this popular workhorse of the Fuelfix & Tanks2Go range to another level. Fuel dispensing is rated up to 52L per minute through a solar-powered pumping unit

Fuel is delivered up to 52L per minute with a lift capacity of 3 metres through a mobile solar-powered pumping unit. Generating 120W power, this solar option is emission-free, low noise, self-priming, and virtually maintenance-free.

The mobile fuel trainer is well balanced and easy to tow, even when fully loaded, thanks to the dual axle construction. With the built-in safety features, the stringent safety requirements of many sites are easily met.

Specifications

Capacity 1,200L
Dimensions H 1,951mm W 1,944mm L 4,793mm
Weight (Empty/Full) 1,000kg / 2,000kg
  • Safe fill level – 1,200L
  • Fully solar operated pump with deep cycle battery with a reserve capacity of 170 minutes
  • Lift capacity of 3m from the 12-volt pump drawing 35 amps
  • Top-mounted 120W solar panel
  • LED charge indicators showing: Red for solar power input, amber for charging and green indicating fully charged
  • Road registered with all required signage. All lighting is LED. Reflective tape installation available on request
  • Dual axle design for extra strength, stability and excellent ground clearance but still with a low centre of gravity
  • Heavy-duty radial tubeless tyres on standard 16″ rims with spare tyre supplied
  • Marked dipstick with safe fill level
  • Clearly visible automated amber flashing light whilst refuelling
  • Emergency stop button with a battery isolation switch
  • Bunded front containment area under the pump housing further reduces any risk of accidental spillage going to ground
  • Graco 10M x 25mm diameter retractable hose reel with auto shut off nozzle
  • 1 x 4 digit digital fuel meter
  • Disc brakes with manual handbrake
  • Heavy-duty jockey wheel with swivel retraction for optimum ground clearance
  • Heavy-duty 50mm tow hitch
  • 2 x safety chains with load rated shackles
  • 50mm (2”) Dip point with Camlock
  • 75mm (3”) Fill point with Camlock
  • 1 x standard trailer plug (round)
  • 1 x 9kg dry powder fire extinguisher
