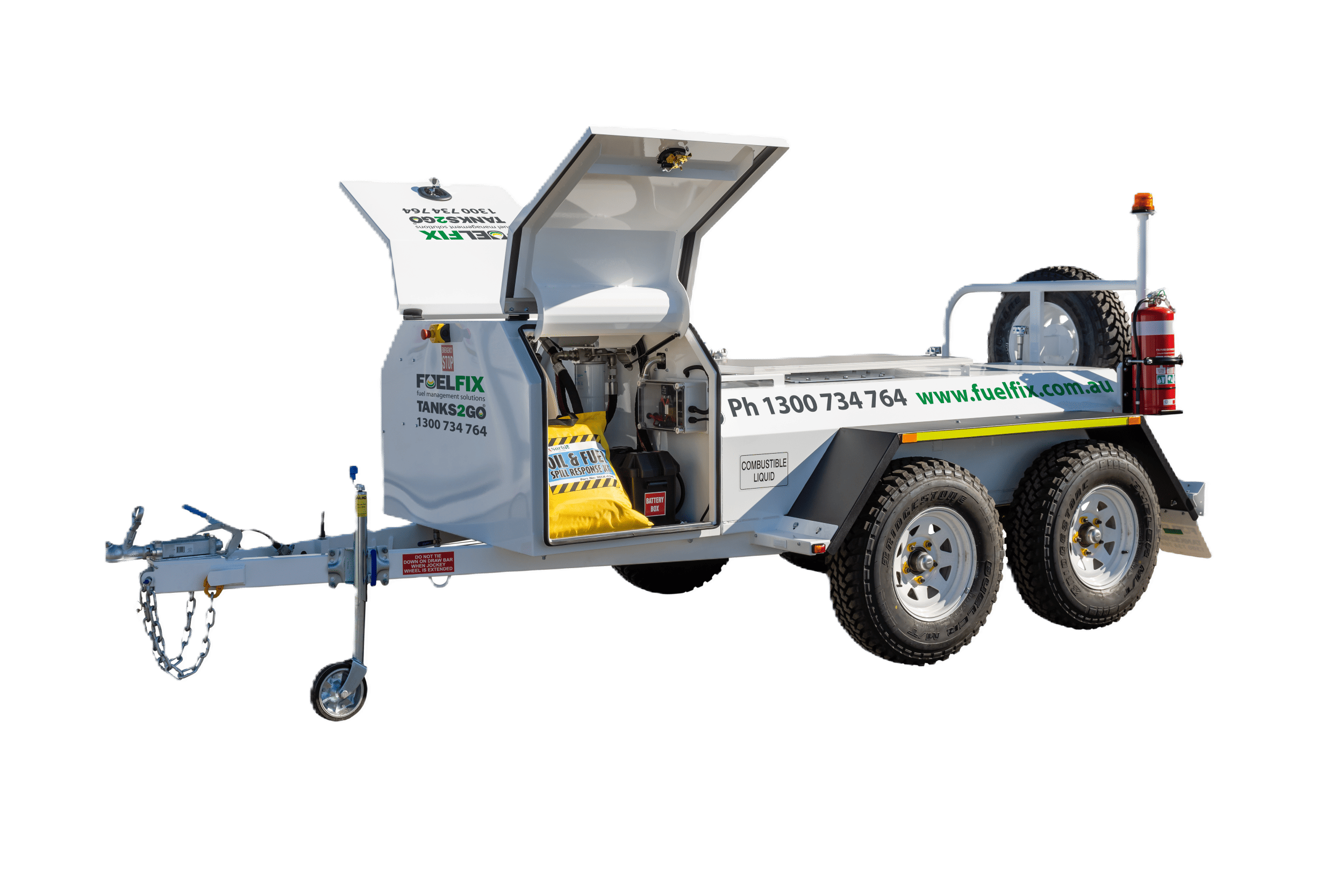

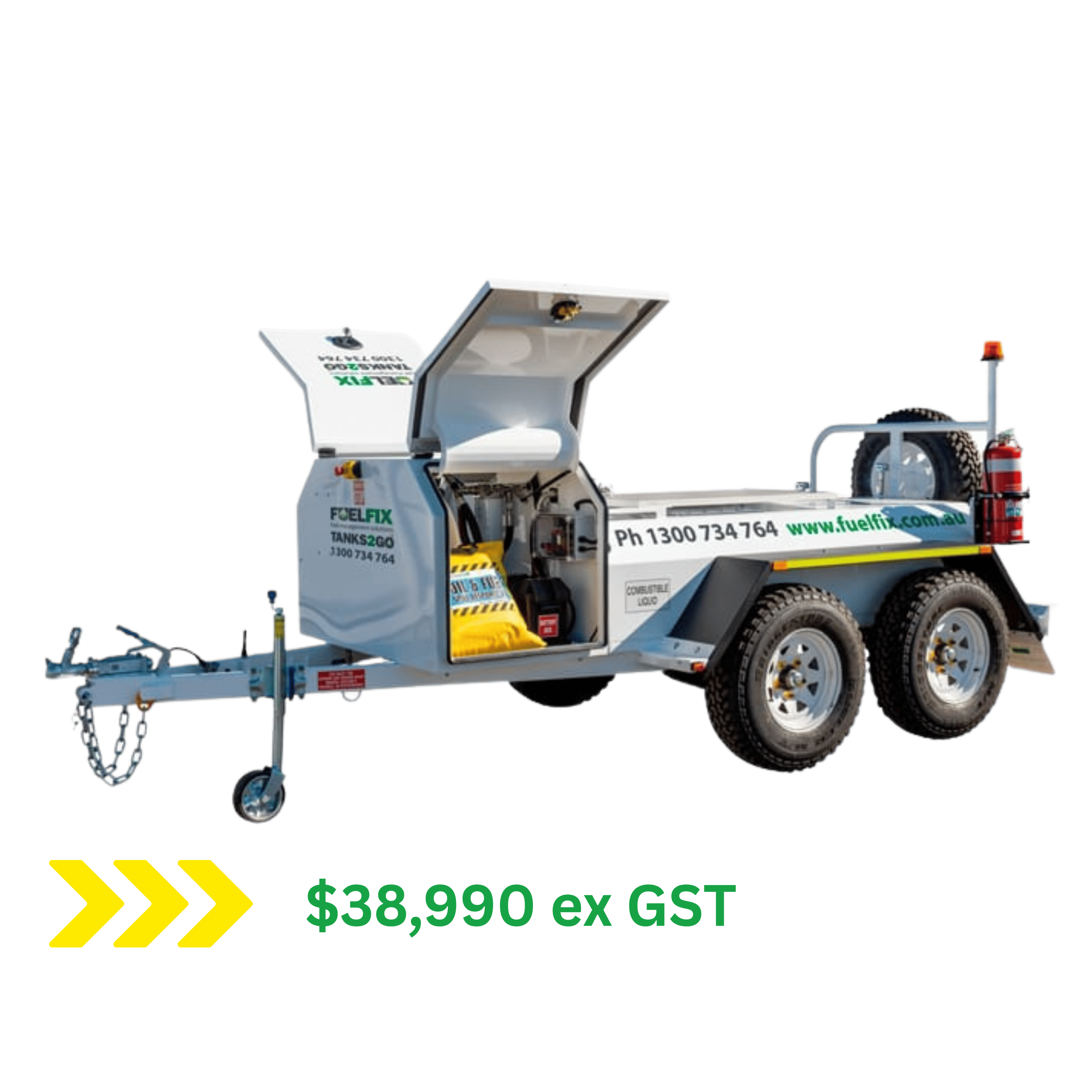

1200 Litre Solar Powered Fuel Trailer

Description

With the introduction of a solar powered option to the fleet Fuelfix & Tanks2Go have developed a mobile fuel trailer that delivers low operating noise, zero emissions and a virtually maintenance free user experience. Combining a self-priming pump with the existing fuel trailer features takes this popular workhorse of the Fuelfix & Tanks2Go range to another level.

Fuel is delivered up to 60lt per minute with a lift capacity of 3 metres through a mobile solar powered pumping unit. Generating 80W with a 20 hour battery life, this is an emission free, low noise, self-priming, and virtually maintenance free product.

The mobile fuel trainer is well balanced and easy to tow, even when fully loaded, thanks for the dual axle construction. With the built-in safety features, the stringent safety requirements of many sites are easily met.

A larger self-bunded 2,000lt mobile trailer is available on request where a larger mobile fuel trailer is required.

Specifications

Capacity 1,200L
Dimensions H 2,000mm W 1,800mm L 4,250mm
Weight (Empty/Full) 1,000kg / 2,000kg
  • Safe fill level – 1,200lt
  • Fully solar operated pump with deep cycle battery with reserve capacity of 170 minutes
  • Lift capacity of 3m from the 12 volt pump drawing 35 amps
  • Top mounted 12 volt solar panel
  • LED charge indicators showing: Red for solar power input, amber for charging and green indicating fully charged
  • Road registered with all required signage and reflective tape, all lighting is LED
  • Dual axle design for extra strength, stability and excellent ground clearance but still with a low centre of gravity
  • Heavy duty radial tubeless tyres on standard 17 inch rims with spare tyre supplied
  • Marked dipstick with safe fill level
  • Clearly visible automated amber flashing light whilst refuelling
  • Emergency stop button with battery isolation switch
  • Bunded front containment area under the pump housing further reduces any risk of accidental spillage going to ground
  • Graco 10 metre x 25mm diameter retractable hose reel with auto shut off nozzle
  • 1 x 4 digit mechanical reset fuel meter
  • Disc brakes with manual handbrake
  • Heavy duty jockey wheel with swivel retraction for optimum ground clearance
  • Heavy duty 50mm tow hitch
  • 2 x safety chains with load rated shackles
  • 50mm (2”) Dip point with camlock
  • 75mm (3”) Fill point with camlock
  • 75mm (3”) Vent point with camlock
  • 1 x standard seven pin trailer plug
  • 1 x 9kg fire extinguisher
  • Trailer dimensions in mm: 1,800W x 4,250L x 2,000 H
  • (trailer height is measured to top of flashing light pole)
  • 1200lt trailer tare weight is approximately 1,000kg
  • (This is unloaded trailer weight)
  • 1200lt trailer loaded weight is approximately 2,000kg

32lt spill kit in top mounted Tuff box which includes:

  • 2 x 1m sausage soaker to contain and absorb fuel spills
  • 1 x pack of absorbent 300 x 300 pads
  • Absorbent powder which holds 11 times own weight
  • Protective gloves
  • Bags for contaminated material to allow safe disposal
