25,000L Self Bunded Fuel Tank

The 25,000L tank has superior capacity but is narrow enough to fit where space is limited. Easy to position on site and with an electric or diesel powered HV/LV skid pump module, refuelling your fleet couldn’t be easier.

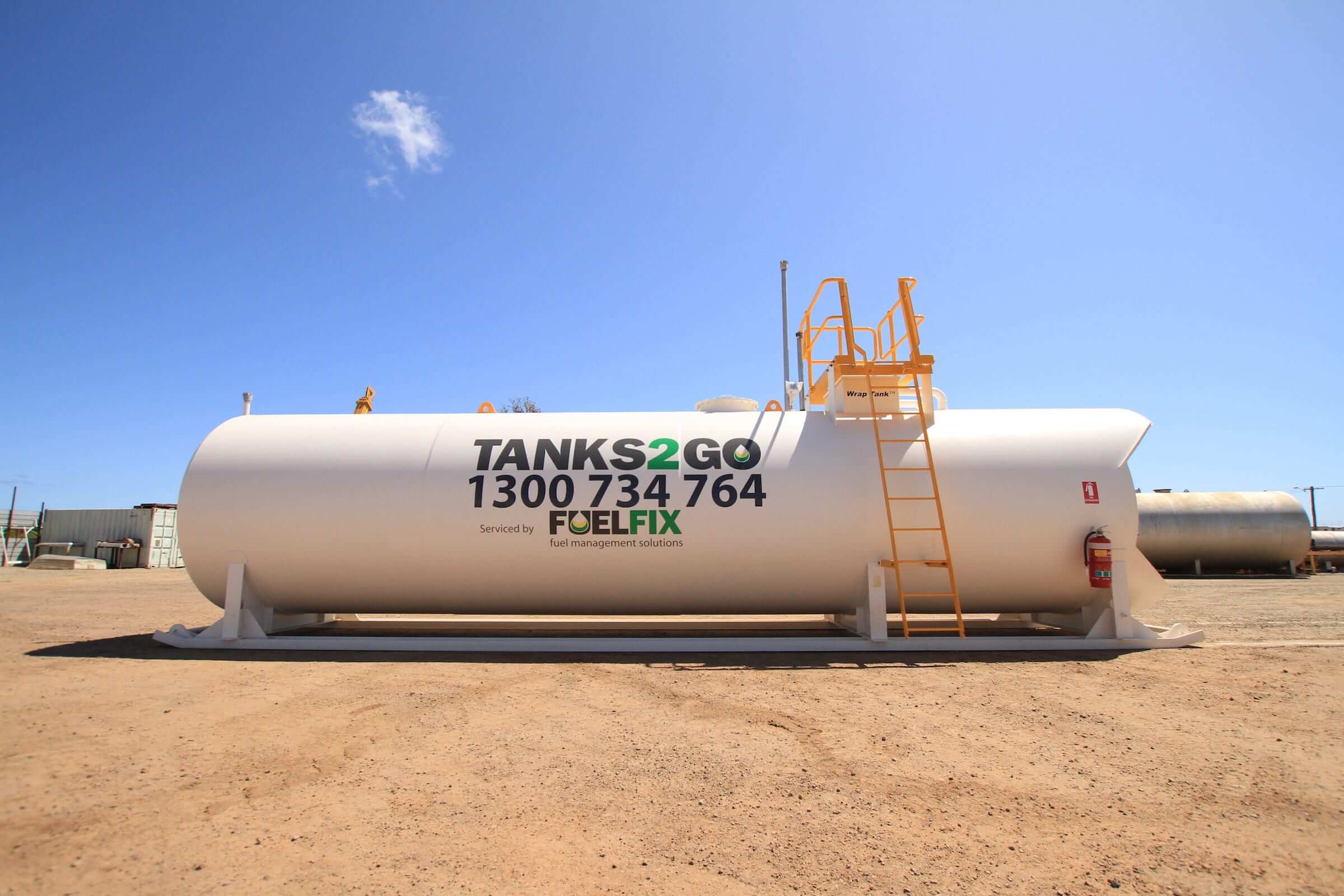

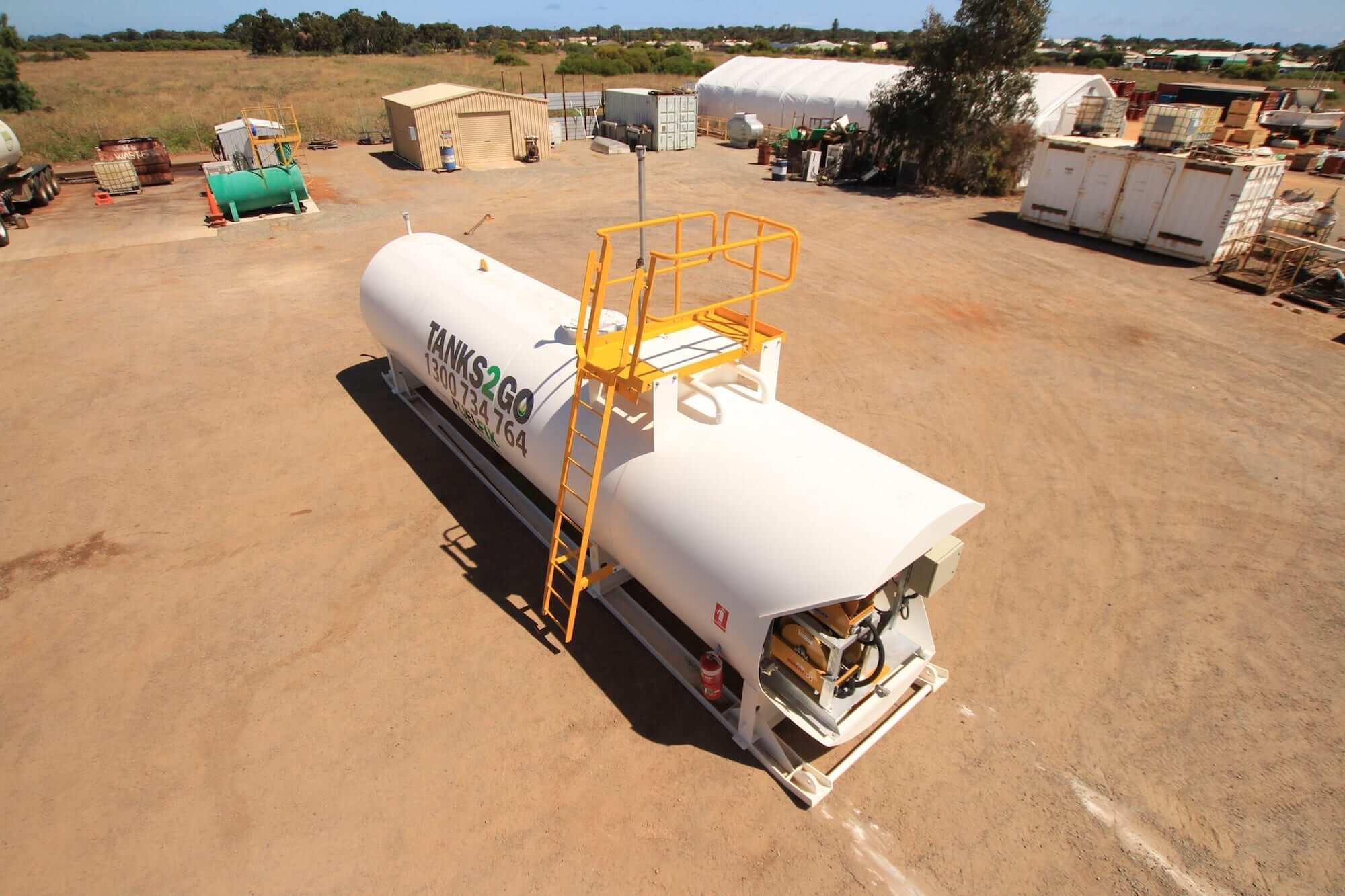

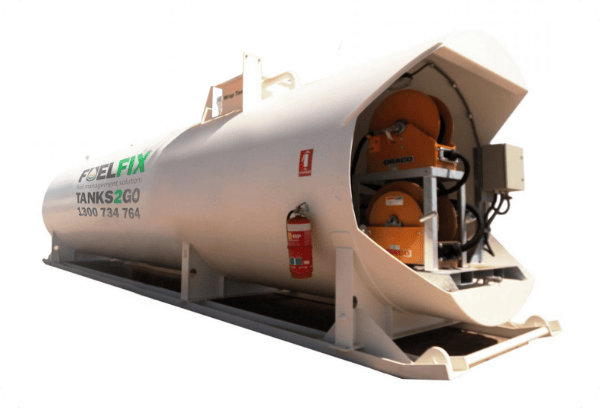

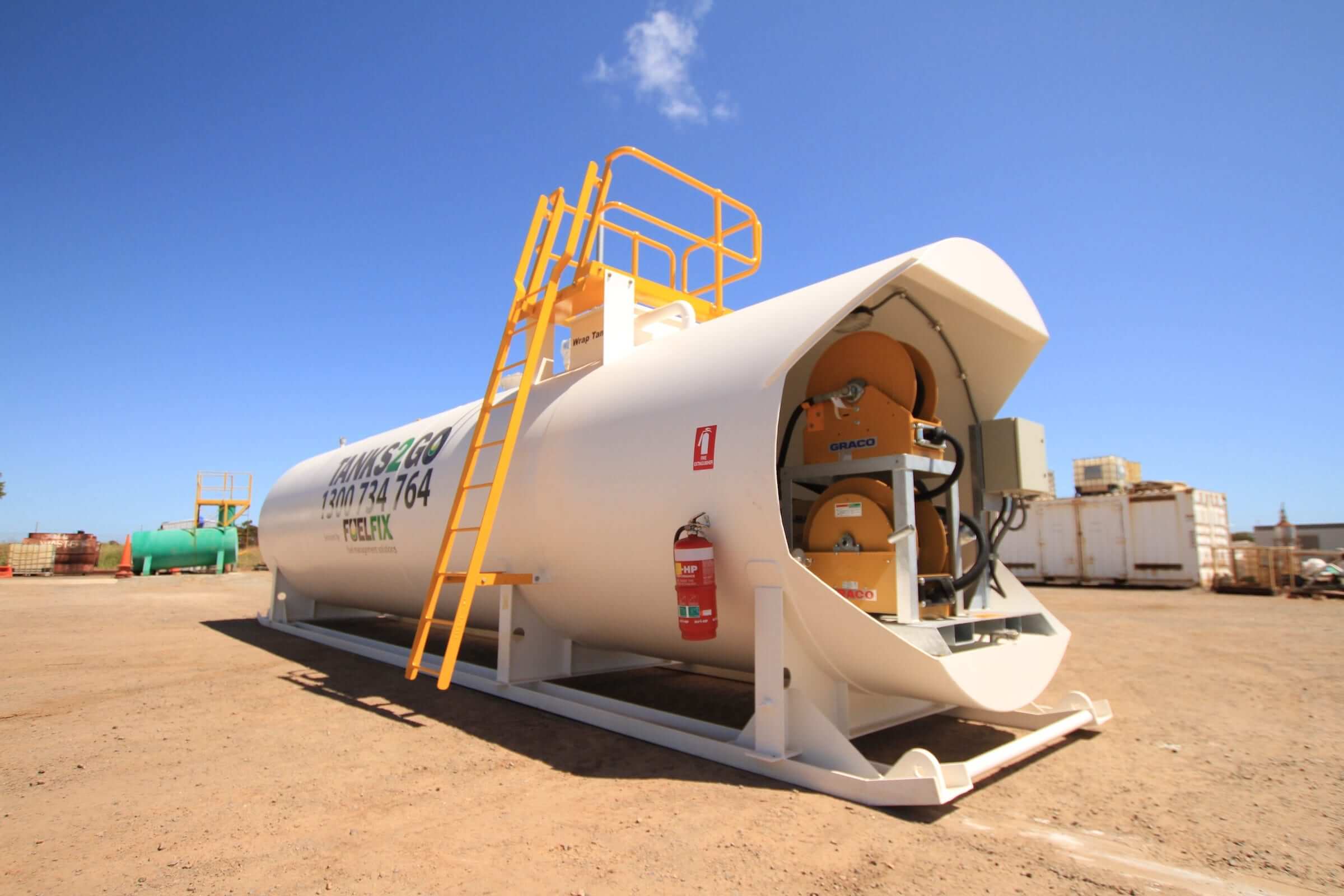

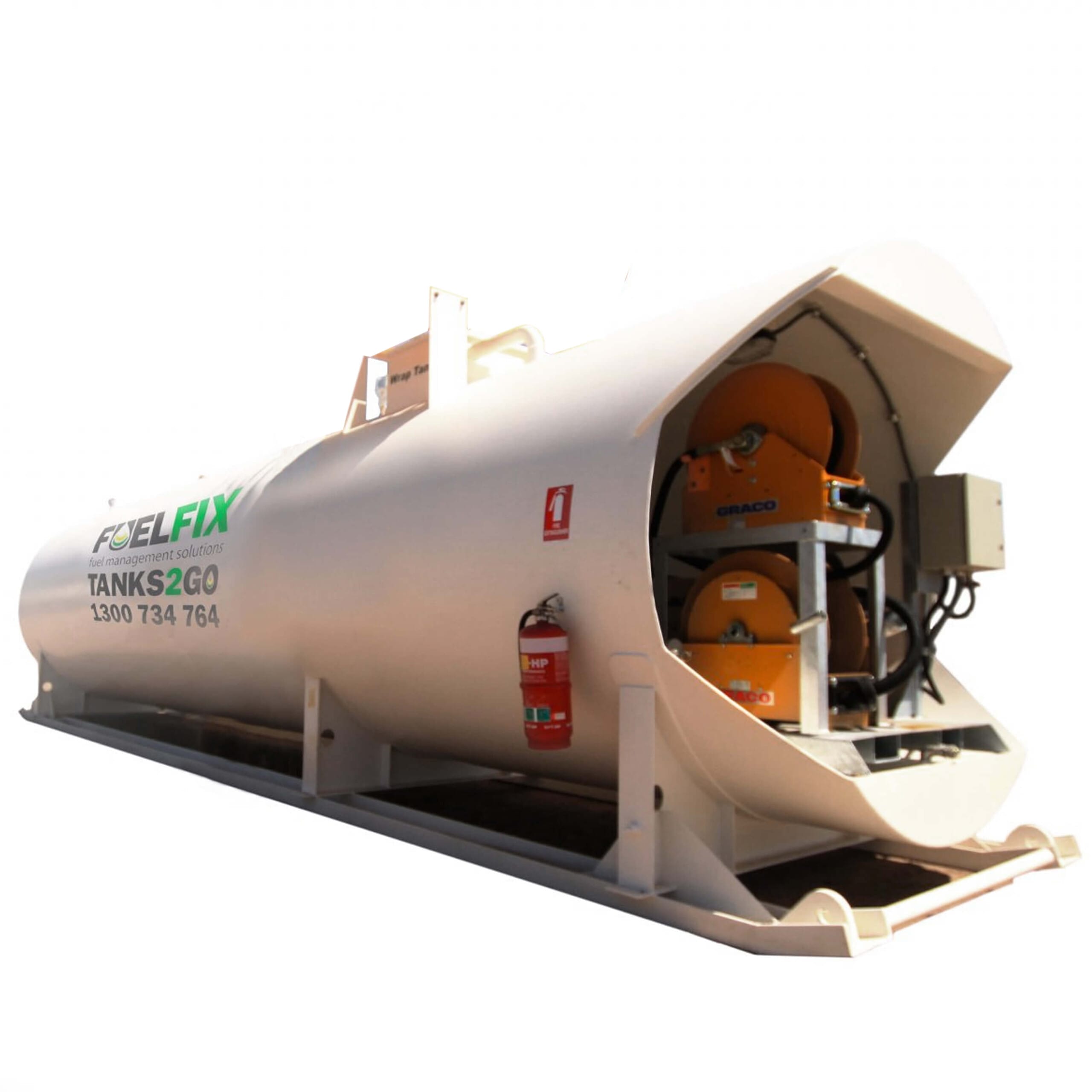

T30 Self Bunded Tank

30,000L Self Bunded Tank

  • Fully customisable pump bay to suit customer requirements
  • Plug and play power supply
  • Heavy duty, proven performer tank within the mining and construction industry for over a decade
  • Self-pumping with heavy and light vehicle and compact in size

Product Features

  • Movable: Safe handling can be easily achieved using a crane or tilt-tray.
  • Accessible: Access manway for thorough maintenance and inspection of the primary tank.
  • Efficient: The front cowling area is self-bunded and can be fitted with a removable skid pump module or day tank.
  • Environment-Friendly: Self-bunded tank constructed to AS1692 and AS1940. The front cowling ensures any spills are securely contained within the bunded area.
Movable
icon repair Accessible
icon speed Efficient
icon eco friendly Environment Friendly
Product Specification
27,600L
26,600L
Height 2,900 mm
Length 9,800mm
Diameter 2,250 mm
Empty 8,000 kg
Full 30,344 kg
AS1692
AS1657
AS1940
AS1692
AS1657
9 kg dry powder extinguisher
Vent pipe and dipstic
80mm fill line with mechanical overfill prevention valve
50 mm suction line
2" wet test port
Audible overfill alarm and cowling light
Ladder, ladder cage (where applicable) and platform built to AS1657
Various electric and diesel-powered dispensing and tanker unloading solutions to suit all applications
Fuelfix fuel management system with optional tank gauging
1,000L generator day tank
NMI approved meter
