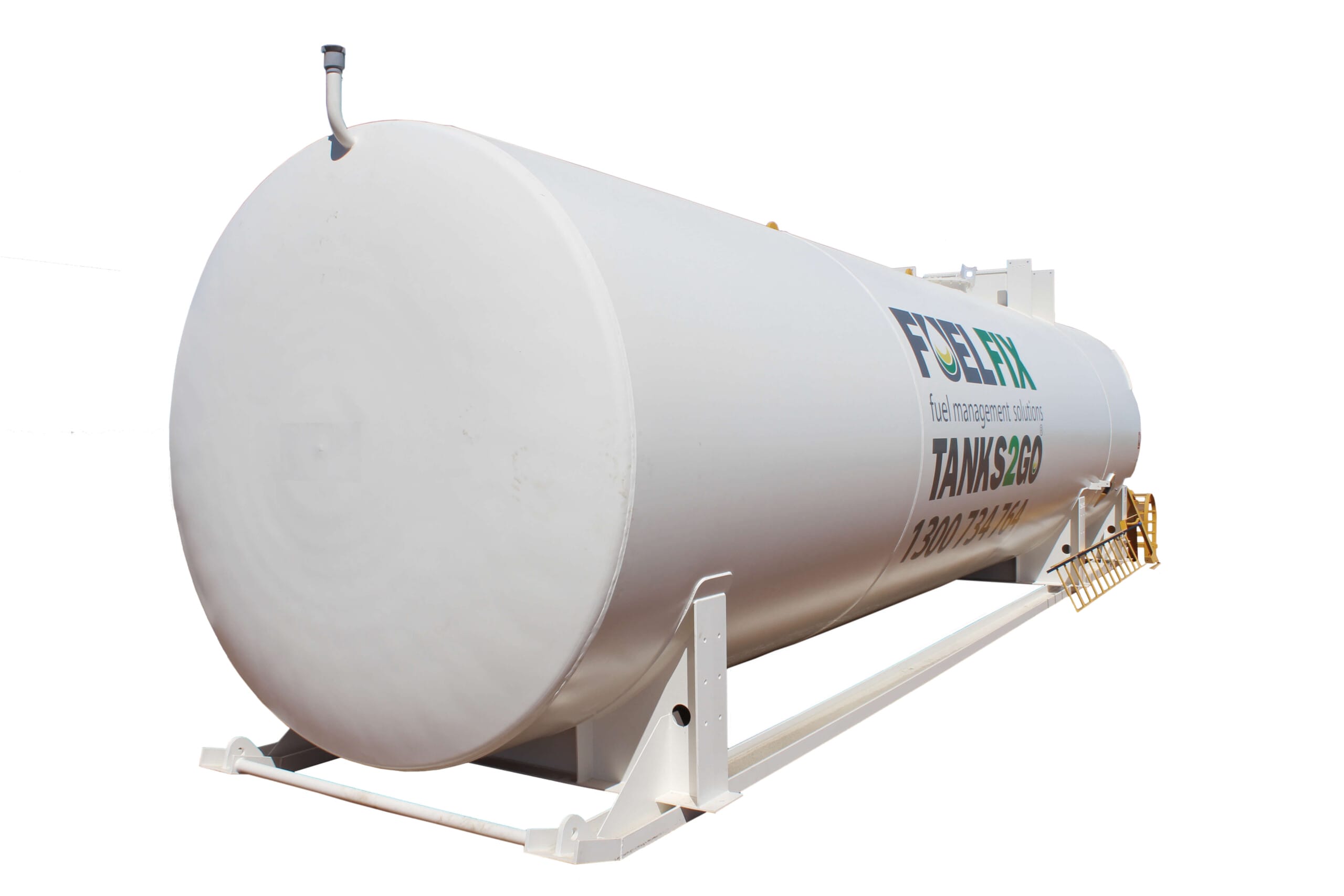

55,000L Self Bunded Tank

Keep up with fuel demand and stay fully operational with our 55,000L fuel storage solution, which can be adapted to meet any requirement, while meeting all HSE standards.

T55 Self Bunded Tank

55,000L Self Bunded Tank

  • Fully customisable pump bay to suit customer requirements
  • Plug and play power supply
  • Heavy duty, proven performer tank within the mining and construction industry for over a decade
  • Meet all HSSE standards and stringent mine site requirements

Product Features

  • Movable: Safe handling can be easily achieved using a crane or semi tilt-tray.
  • Accessible: Access manway for thorough maintenance and inspection of the primary tank.
  • Efficient: The front cowling area is self-bunded and can be fitted with a removable skid pump module or day tank.
  • Environment-Friendly: Self-bunded tank constructed to AS1692 and AS1940. The front cowling ensures that any spills that occur during tank filling or maintenance are securely contained within a bunded area.
icon repair Accessible
icon speed Efficient
icon eco friendly Environment Friendly
Product Specification
Height 3,500mm
Width 2,780 mm
Length 11,600 mm
Empty 10,300 kg
Full 54,484 kg
9 kg dry powder extinguisher
Vent pipe and dipstick
80mm fill line with mechanical overfill prevention valve
50 mm suction line
2" wet test port
Audible overfill alarm and cowling light
Ladder, ladder cage (where applicable) and platform built to AS1657
Various electric and diesel-powered dispensing and tanker unloading solutions to suit all applications
Fuelfix fuel management system with optional tank gauging
1,000L or 2,000L generator day tank
NMI approved meter
