NET-ZERO
BESS - ESU1250
Containerised Battery Energy Storage System
The ESU375kw/720kWh is a large-scale containerised Battery Energy Storage System designed for high-demand hybrid, off-grid and grid-connected power systems. It supports sites with significant and variable loads by improving power stability, reducing generator dependence, and enabling more controlled energy management across complex industrial operations.

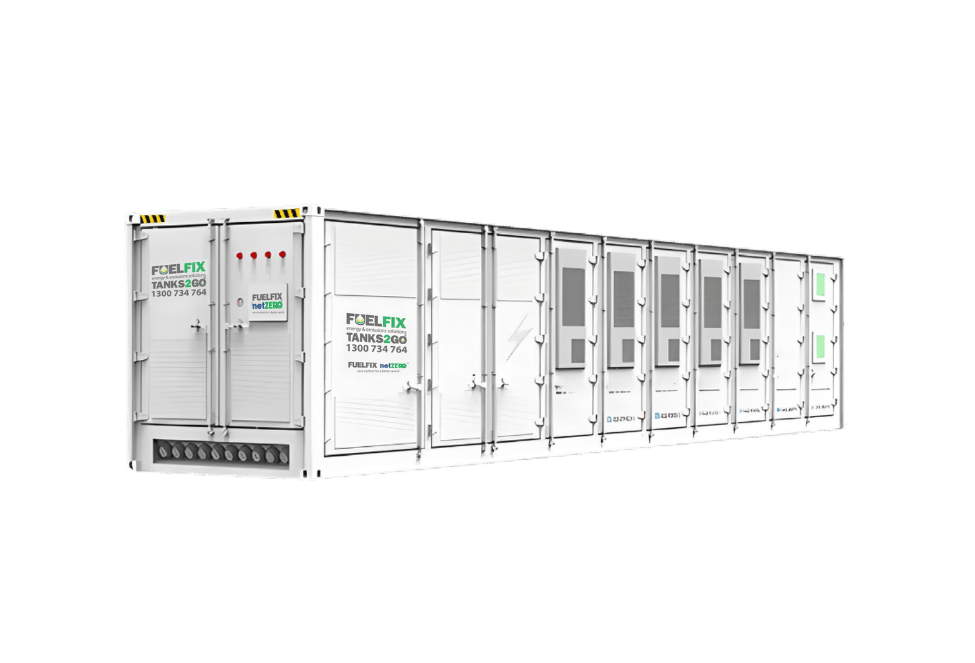

40FT Containerised Battery Energy Storage System
A large-scale containerised BESS designed to support high-demand industrial power systems and complex hybrid energy configurations.
- Reduces reliance on continuous diesel genset operation
- Stabilises power across high and variable load conditions
- Supports integration with diesel gensets, solar PV and microgrids
- Enables off-grid, grid-connected and large hybrid system operation
- Can be pre-configured within defined power and battery capacity ranges to match site‑specific energy demand.
- Containerised solution designed for rapid deployment on remote industrial sites
Product Features
The ESU1250kW/2400kWh delivers high-capacity energy storage and advanced control capability for large-scale and complex power systems.
The system can be pre-configured within defined power and battery capacity ranges, allowing the solution to be right‑sized to site‑specific energy and load requirements. This reduces unnecessary infrastructure, simplifies installation and lowers ongoing operating costs, while ensuring stable, efficient power in harsh and remote environments.
- Utility-scale energy storage capacity: Designed to manage high-demand loads and provide sustained support across large industrial operations.
- Safety and reliability: Incorporates LFP battery technology with multi-layer BMS protection, thermal management systems, and integrated fire safety at module level.
- Advanced PCS energy management: The bidirectional PCS coordinates energy flow between multiple generation sources and site loads to maintain system stability.
- Hybrid and microgrid integration: Suitable for integration into large hybrid systems combining diesel generation, solar PV, and grid supply.
- Modular and scalable architecture: Supports deployment as part of larger energy systems, with flexibility for expansion and system configuration.
- Remote monitoring and performance visibility: Enables real-time system monitoring, diagnostics, and operational control.
- 40FT containerised deployment: Designed for efficient transport and installation on large-scale or remote sites.
- Durable design: IP54-rated enclosure supports operation in harsh environmental conditions.

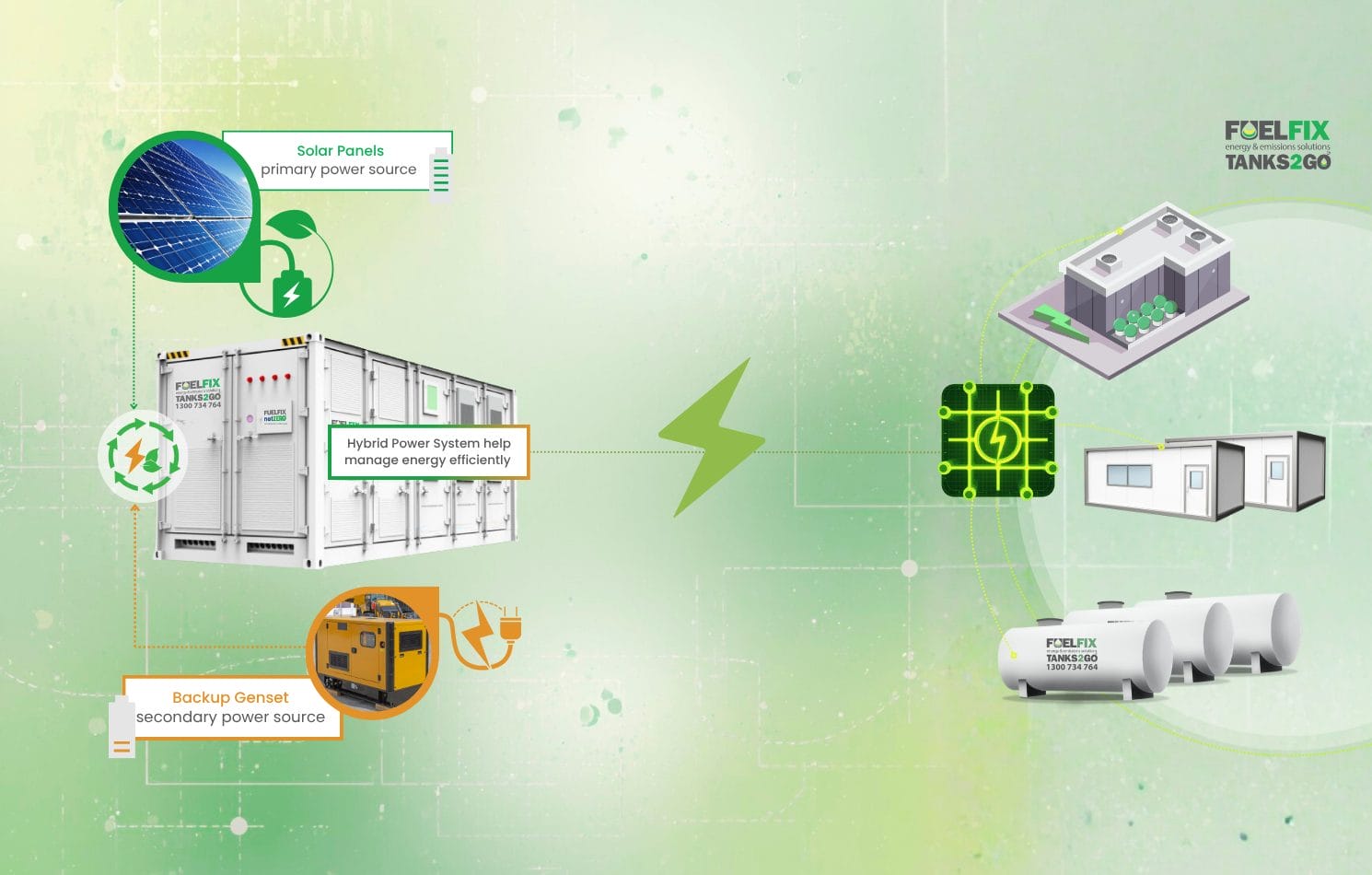

The ESU1250-2400 stores large volumes of energy and dispatches it to maintain system stability across high-demand operations. Its bidirectional Power Conversion System (PCS) manages energy exchange between battery storage, diesel gensets, solar PV, and site loads in real time.
During periods of low demand or excess generation, energy is stored within the system. When demand increases, the stored energy is discharged to support peak loads and reduce strain on primary generation assets.
Within complex hybrid or microgrid environments, the system plays a central role in balancing supply and demand, maintaining voltage and frequency stability, and improving overall system performance. This enables more efficient operation of large-scale energy systems operating in remote or infrastructure-constrained locations.
Typical Applications of Containerised BESS
- Large remote mine sites and major infrastructure & construction projects
- Industrial and utility-scale power systems
- Hybrid microgrids and off-grid energy systems
- High-demand temporary or permanent power installations
Fuelfix BESS in Action
Real-World Operations
EuropeIn a commercial deployment in Europe, SCU implemented a containerised energy storage system to increase solar PV utilisation within an existing power setup. The system stored excess solar generation during low demand periods and discharged it when required, reducing reliance on external energy sources and improving overall system efficiency.
This type of configuration reflects how containerised BESS can be applied in hybrid environments, including Australian mining and infrastructure sites, where integrating solar PV with diesel gensets requires stable, responsive energy management.Frequently Asked Questions
What scale of operation is the ESU1250‑2400 intended for?
The ESU1250‑2400 is engineered for large industrial and infrastructure‑scale sites with high power demand and complex energy systems. It is suited to operations where energy storage is a core part of the power architecture.
How does the ESU1250‑2400 function within large hybrid or microgrid systems?
The system coordinates energy across multiple generation sources and site loads. It helps manage peak demand, stabilise system behaviour, and improve overall power network performance.
When is a 40‑foot containerised BESS required?
A 40‑foot system is typically used where energy storage capacity and power output must support large, continuous loads or multiple interconnected systems.
How does the ESU1250‑2400 support continuous‑operation environments?
Its high storage capacity, long battery cycle life, and integrated thermal management support sustained operation in demanding, always‑on applications.
What operating environments is the ESU1250‑2400 designed for?
The system is designed for harsh and remote environments, operating across wide temperature ranges and protected by an IP54‑rated enclosure.
