110,000L Self Bunded Fuel Tank

Experience the proven efficiency of the Fuelfix & Tanks2Go 110,000L self-bunded tank. This fuel storage solution provides a large storage capacity and includes an unloading pump to keep your fuel delivery costs down. Everything is pre-wired to ensure rapid deployment.

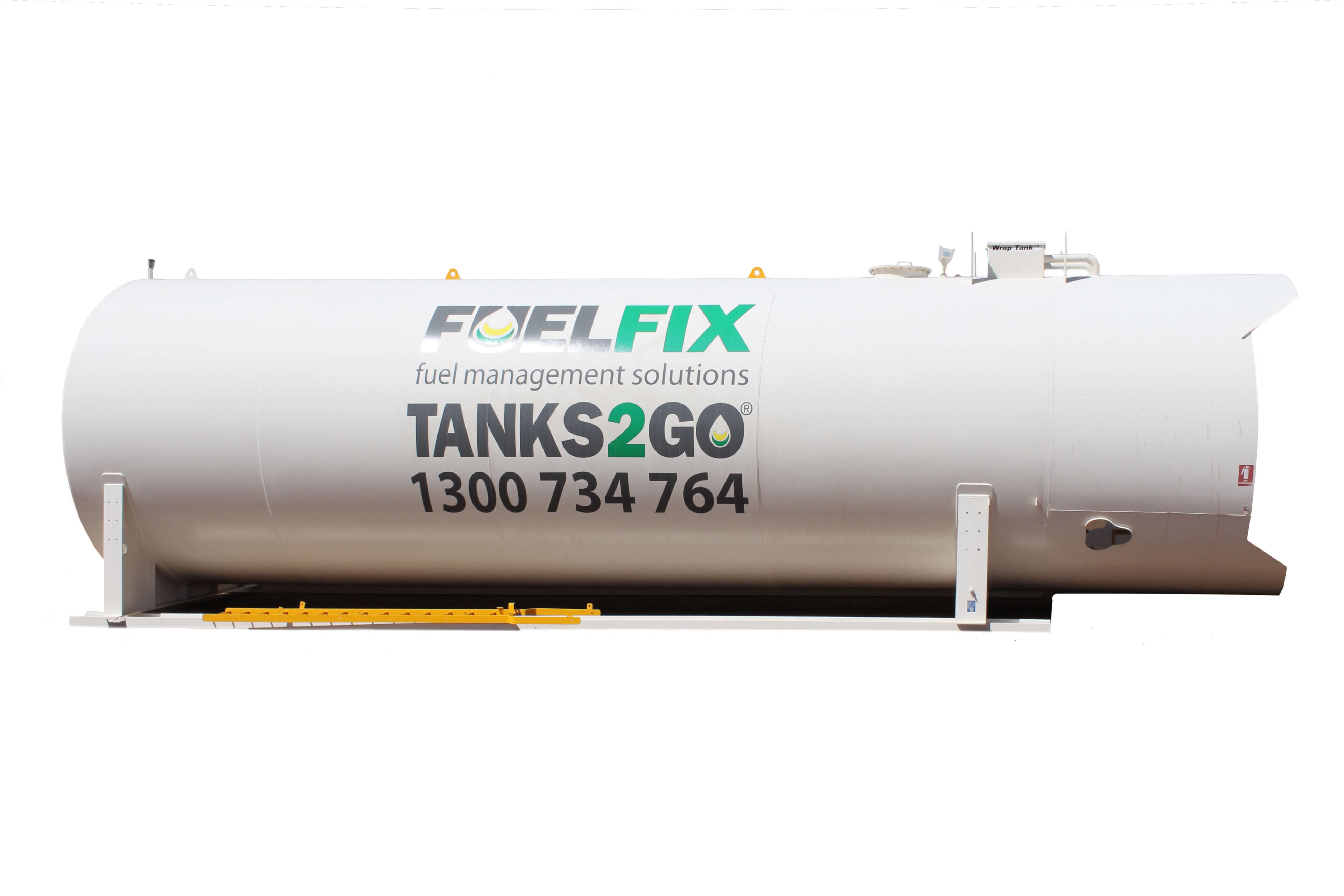

110FF Self Bunded Tank

110,000L Self Bunded Tank

  • Fully customisable pump bay to suit customer requirements
  • Plug and play power supply
  • Heavy duty, proven performer tank within the mining and construction industry for over a decade

Product Features

  • Movable: Safe handling can be easily achieved using a crane and flat deck.
  • Accessible: Access manway for thorough maintenance and inspection of the primary tank.
  • Efficient: The front cowling area is self-bunded and can be fitted with a removable skid pump module or day tank.
  • Environment-Friendly: Self-bunded tank constructed to AS1692 and AS1940. The front cowling ensures that any spills that occur during tank filling or maintenance are securely contained within a bunded area.
Movable
icon repair Accessible
icon speed Efficient
icon eco friendly Environment Friendly
Product Specification
110,000L
108,000L
Empty 20,100kg
Full Tank 110,720kg
Height 4,150mm
Diameter 3,502mm
Length 14,684mm
AS1940
AS1692
AS1657
9 kg dry powder extinguisher
vent pipe and dipstick
80mm fill line with mechanical overfill prevention valve
unloading pump
80 mm suction line with anti-syphon valve
2" wet test port
audible overfill alarm and cowling light
ladder
adder cage (where applicable) and platform built to AS1657
Various electric and diesel-powered dispensing and tanker unloading solutions to suit all applications
Fuelfix fuel management system with optional tank gauging
1,000L or 2,000L generator day tank
NMI approved meter
