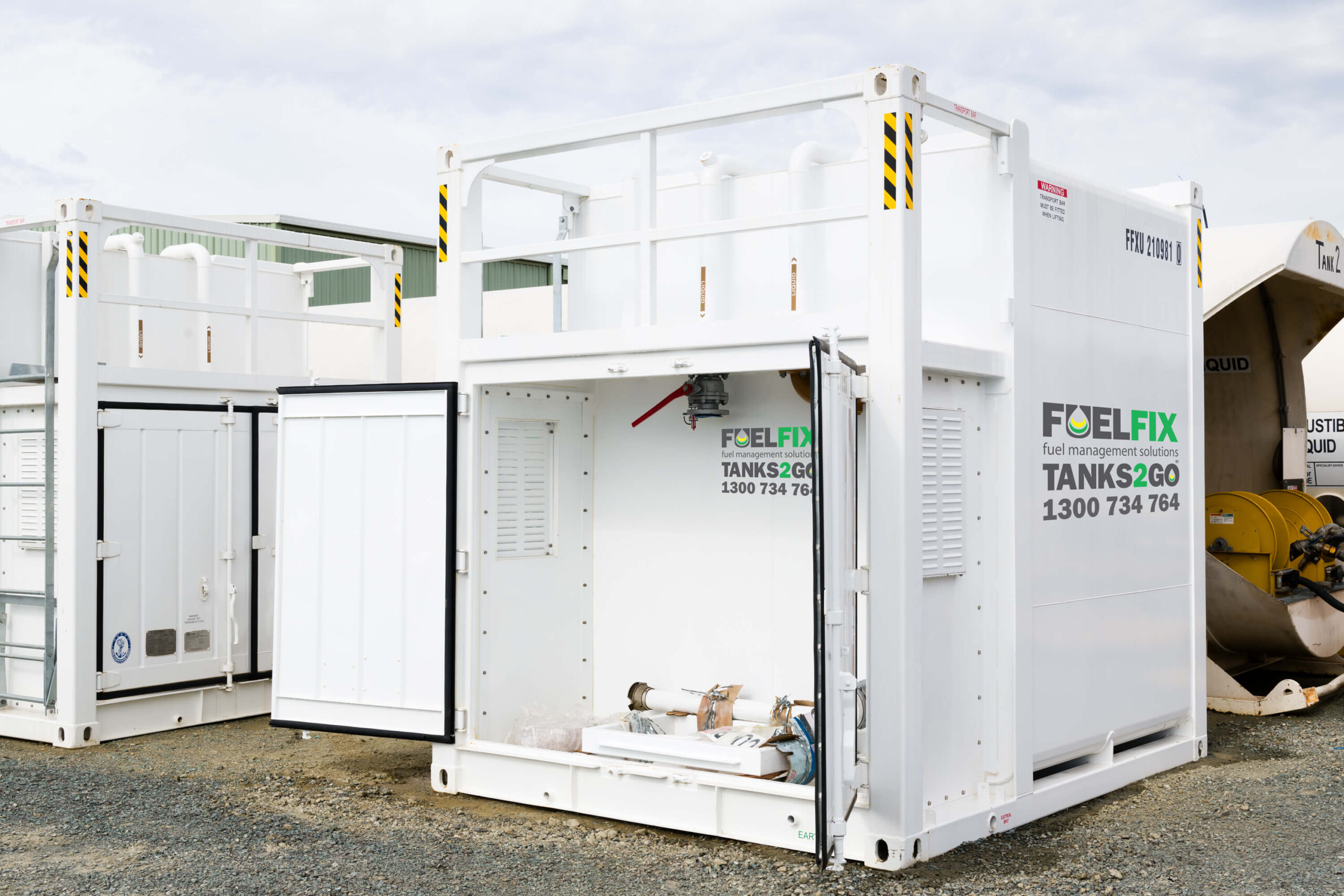

12FF Self Bunded Fuel Tank

Category:

Description

  • Self bunded double wall design
  • Overfill protection supplied with mechanical shutoff and audible/ visual alarm
  • Free to air vent with weather cap
  • Fluid level dipstick
  • Antisyphon valve installed
  • Fixed ladder at front of tank
  • Tank floor has fall to front for water collection and tank-top evacuation point

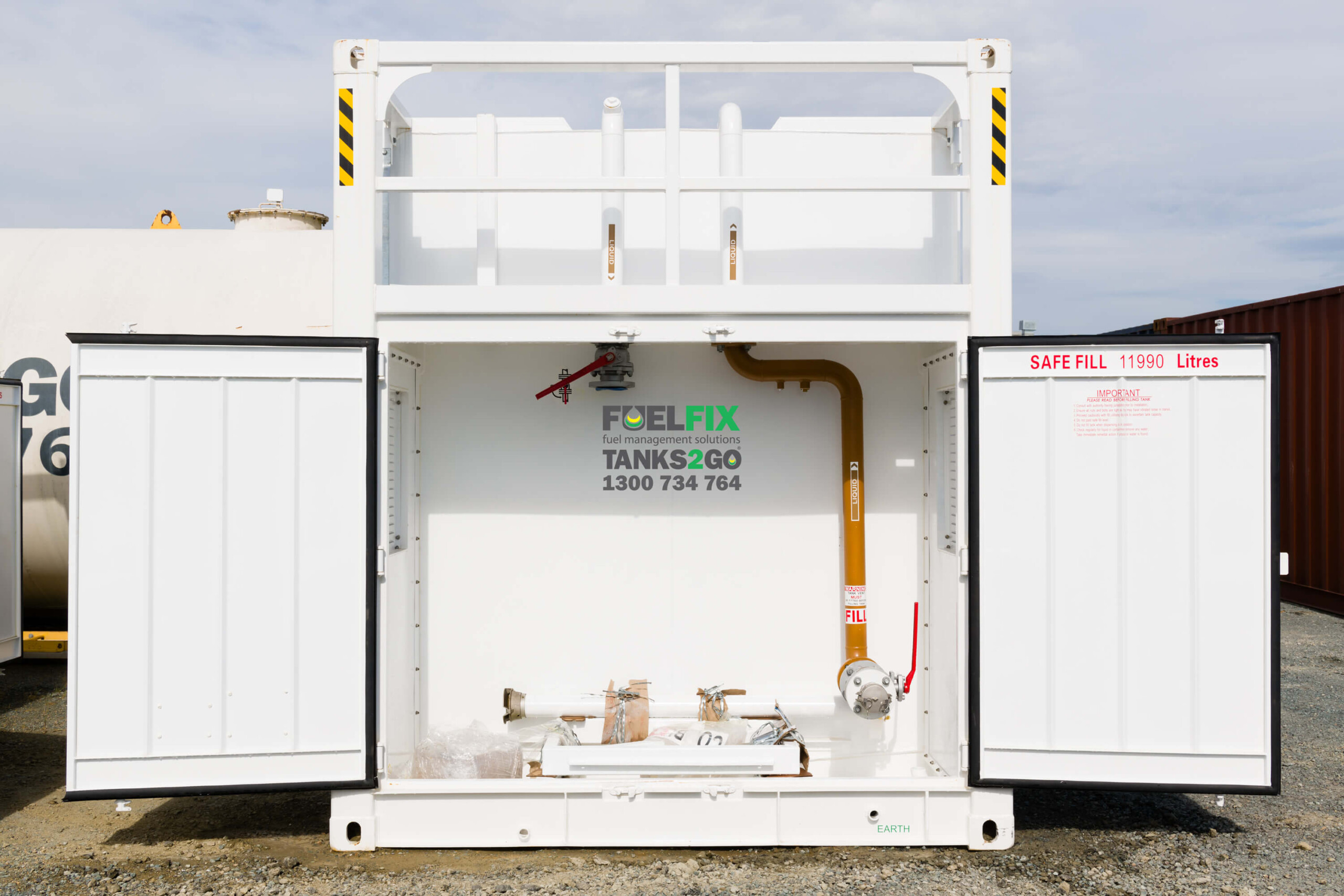

  • Bunded (spill contained) pump bay housing with removable ventilation panels

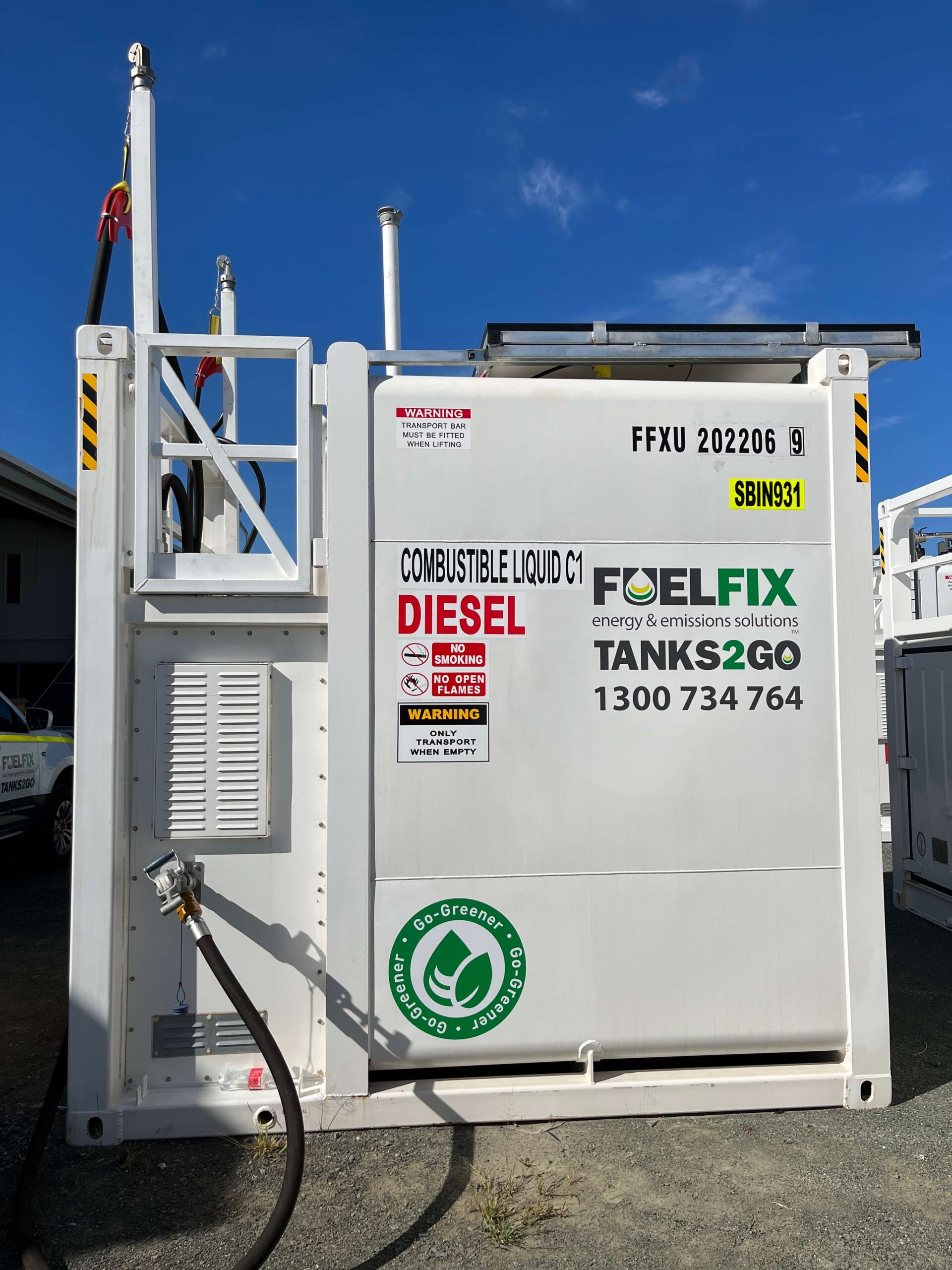

  • Statutory signage
  • Under tank visibility

Specifications

Capacity 12,560L
Dimensions H 2,896mm W 2,438mm L 3,048mm
Weight (Empty) 4,300kg
  • Safe Fill: 11,990 litres
  • 80nb Camlock male tanker hose filler with dust cap connect
  • Tanker fill point supplied with 80nb full bore
  • Fire safe flanged ball valve and wafer style non-return valve
  • Container corner castings
  • Statutory access manway
  • Permanent ladder and platform
  • Water evacuation pipe
  • Interstitial dipstick
  • Interstitial pressure vent
  • Marine grade polyurethane paint (white in colour)
  • Approvals: UL142, ULCS601, AS1940, AS1692, AS1657
