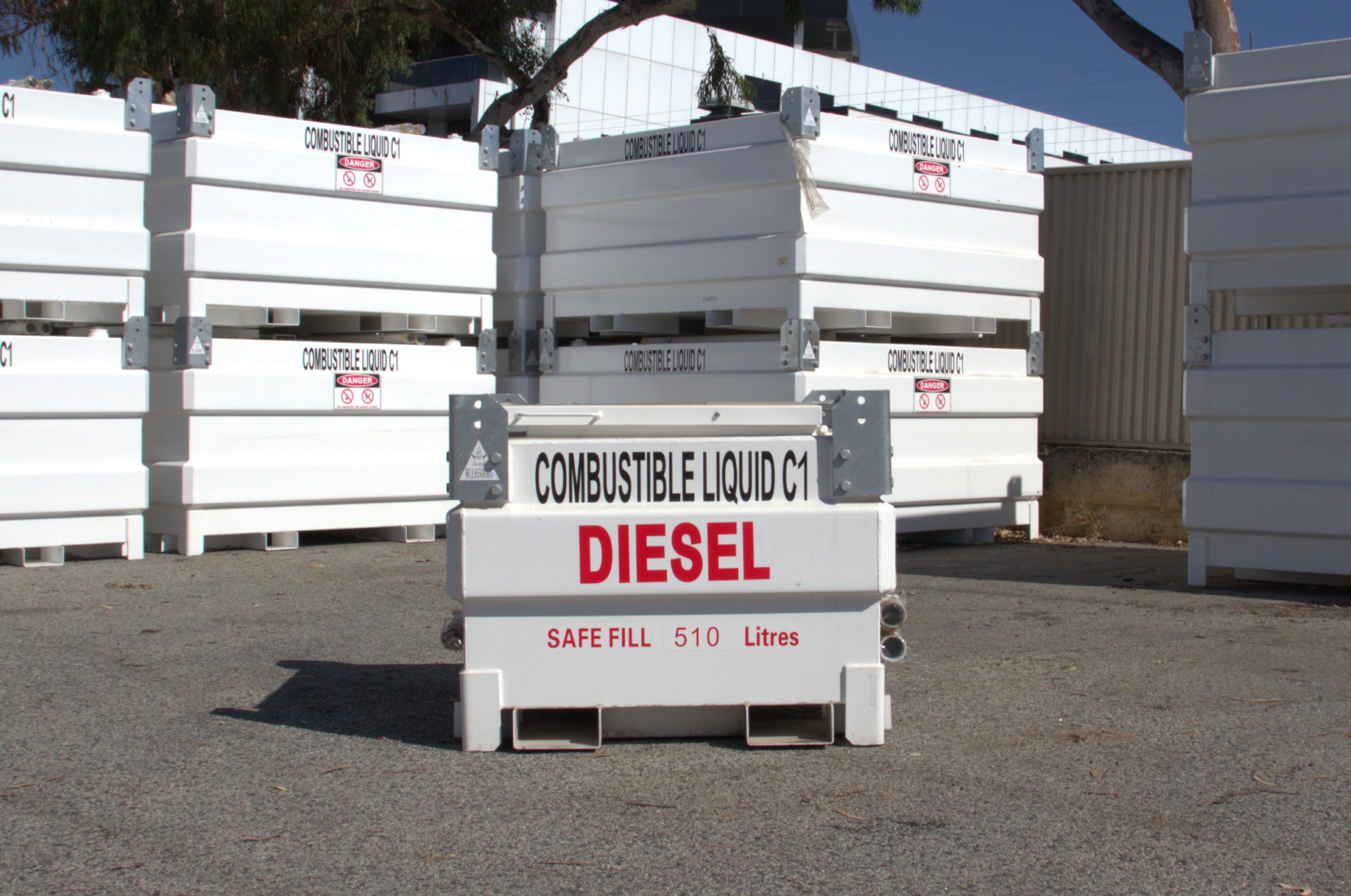

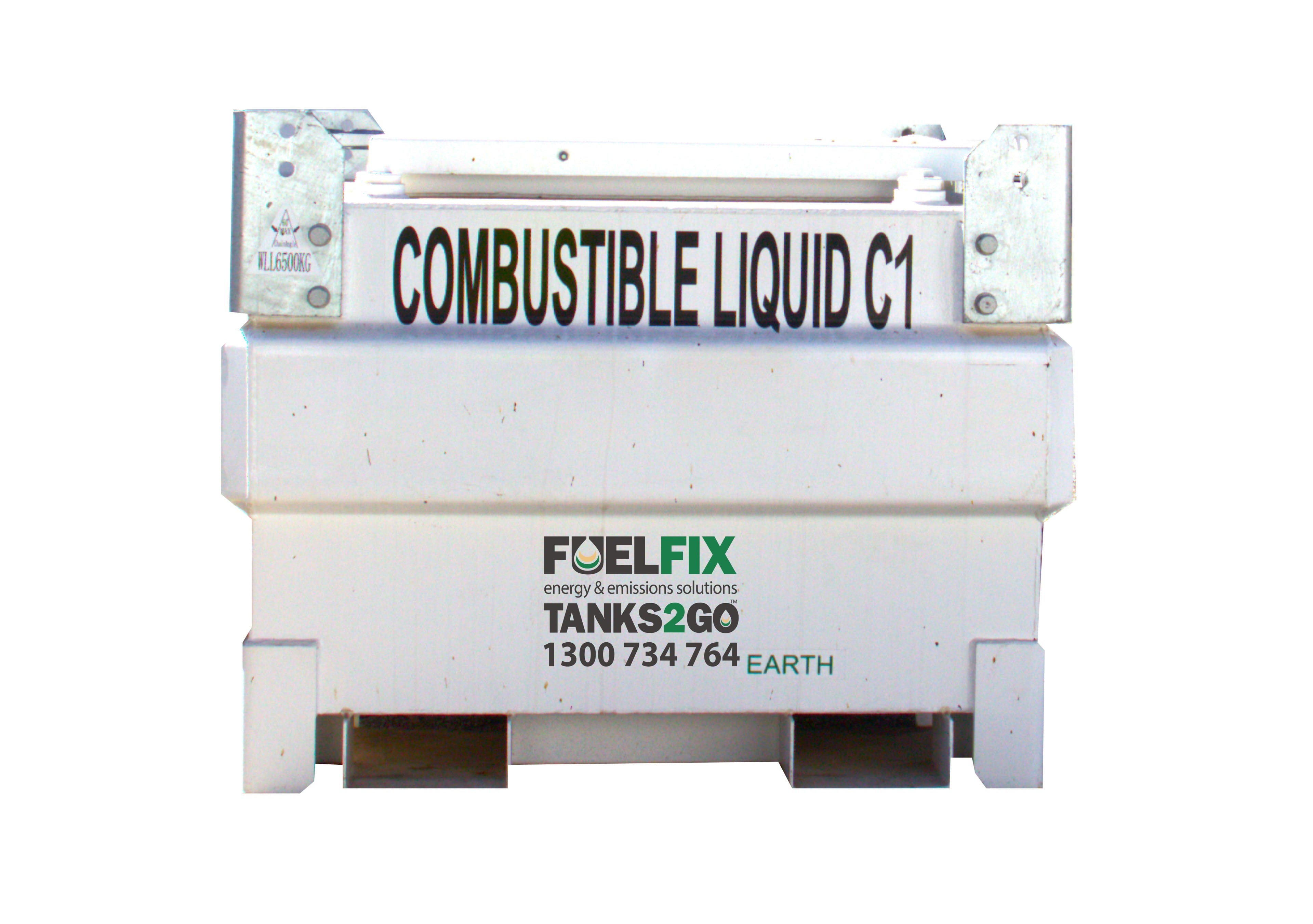

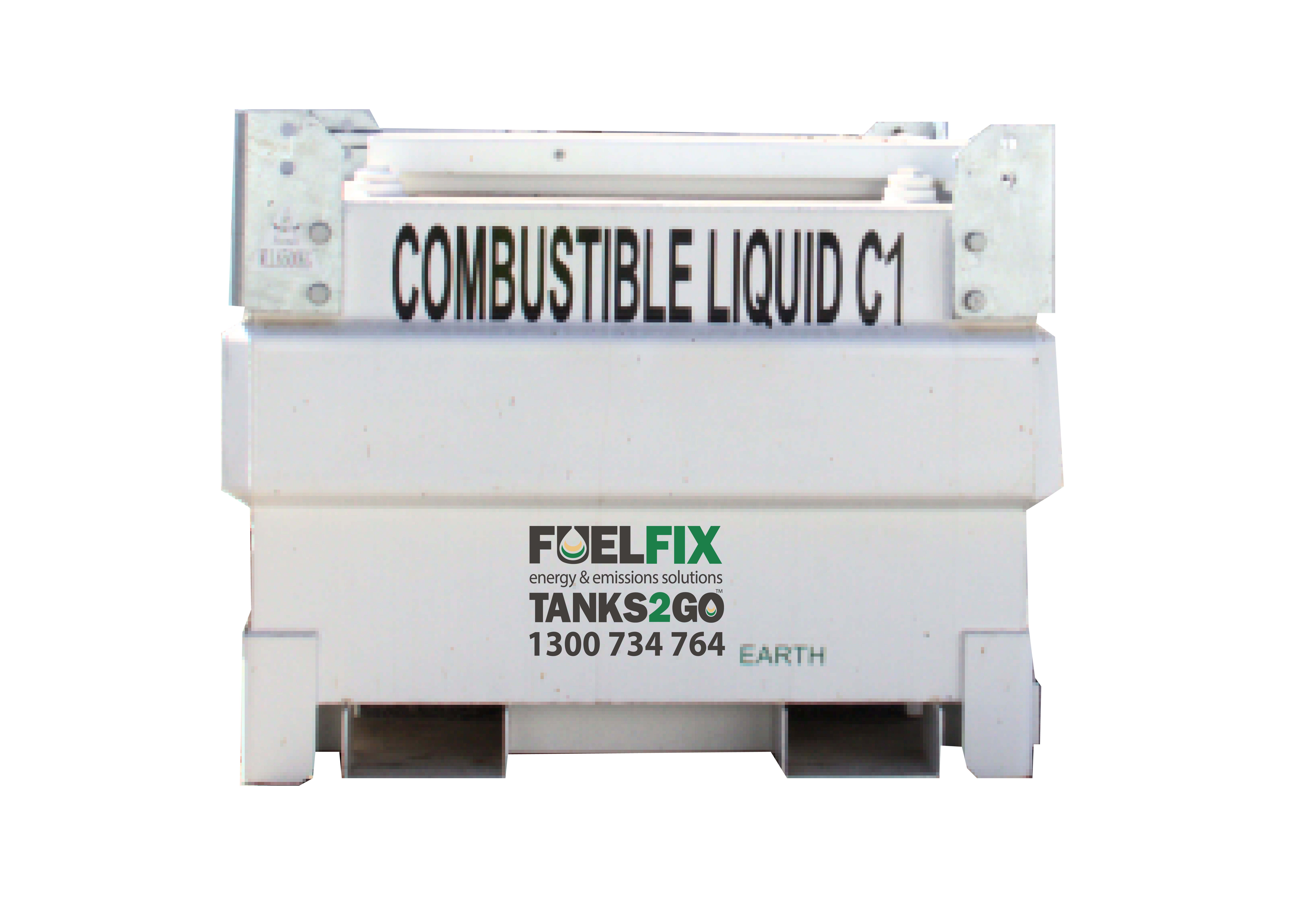

500L Self Bunded Fuel Tank

Ideal for use in stand-by applications for refuelling smaller equipment, such as industrial heaters, small generators, lighting towers and more.

500L Self Bunded Fuel Tank

  • Fully customisable to suit customer's requirements including solar powered options.
  • Easy to transport and to relocate on site.
  • Low profile design allowing ease of access to vehicle refuelling sets-up and ease of fuel transfer when connected to generators or pumps.
  • Self-bunded fuel tank with lockable cabinet.

Product Features

  • Movable: Full load lifting eyes, forklift pockets and internal baffles are designed to allow safe and easy handling of the tank full of fuel.
  • Stackable: Easily stackable design supports 2 high when full and 3 high when empty, reducing storage space requirements.
  • Efficient: Lockable cabinet secures equipment. Fuel ports can run up to 3 pieces of diesel-powered equipment.
  • Environment-Friendly: Secondary containment is compliant with AS1940 (2017). The tank design is compliant with UL142.
icon transport ease Movable
Stackable
icon repair Accessible
icon speed Efficient
icon eco friendly Environment Friendly
Product Specification
500L
474L
Empty 399kg
Full 905kg
474L
Height 855mm
Width 1,155mm
Length 1,155mm
UL142
UN31A
UN1202
AS1940
AS1692

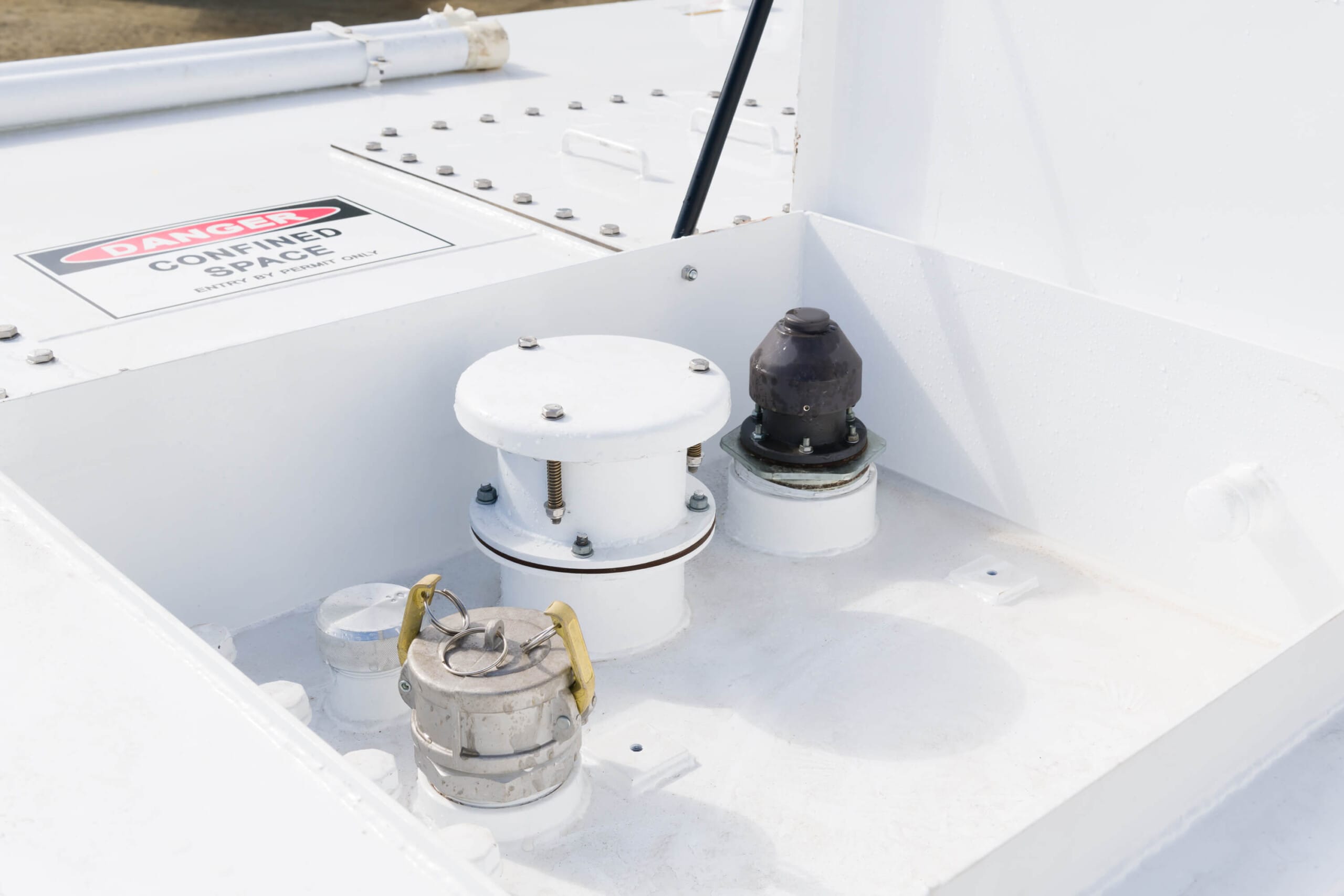

3” fill point
2” fusible link fill port
1” pump feed with flexible suction line, strainer and non-return valve
1 engine feed and return port set, working vent, breather vent
Complete transfer pump kits
Water and particulate filter kits
Fuel up to 2 feed and return blocks
Fuel hose and quick couplers
