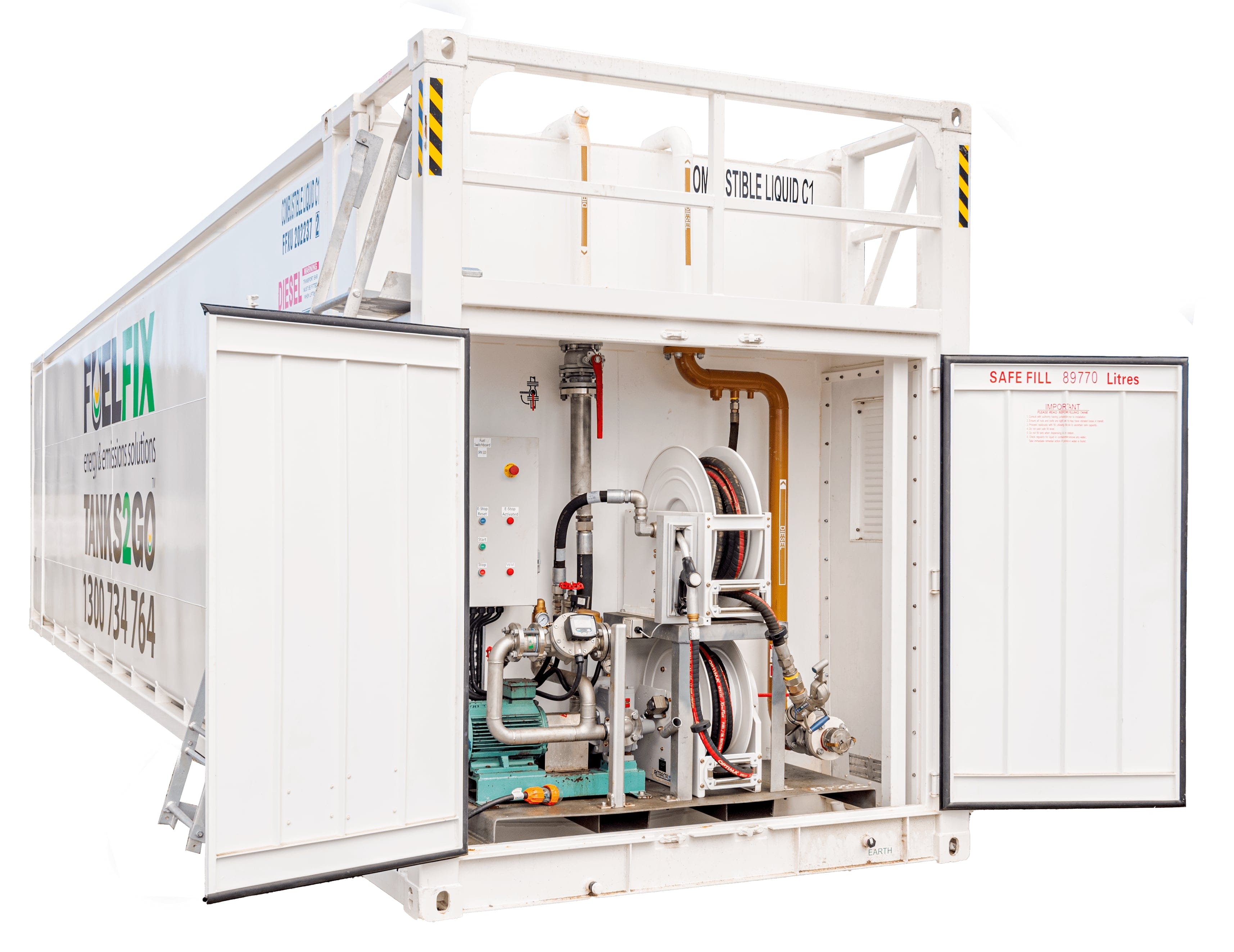

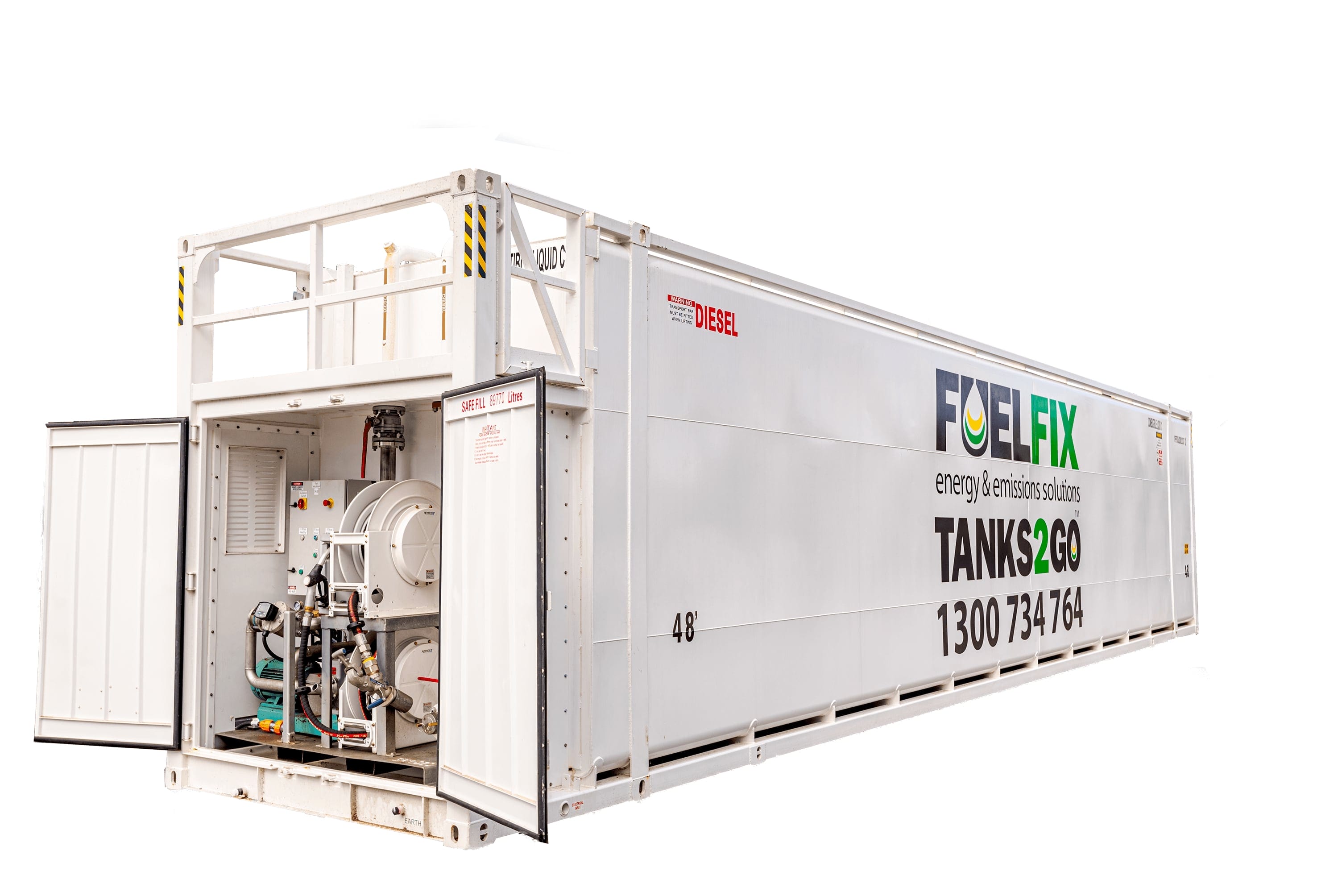

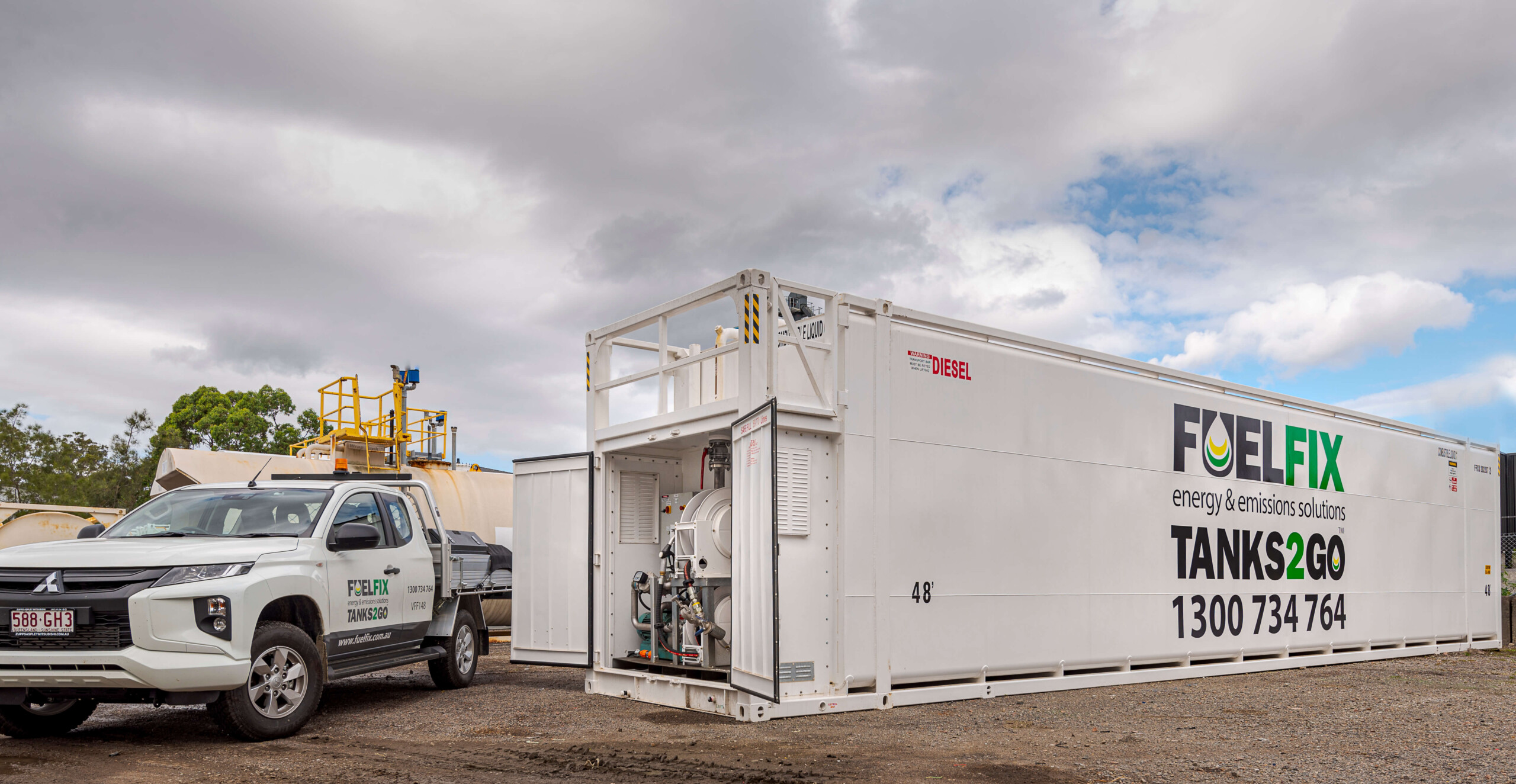

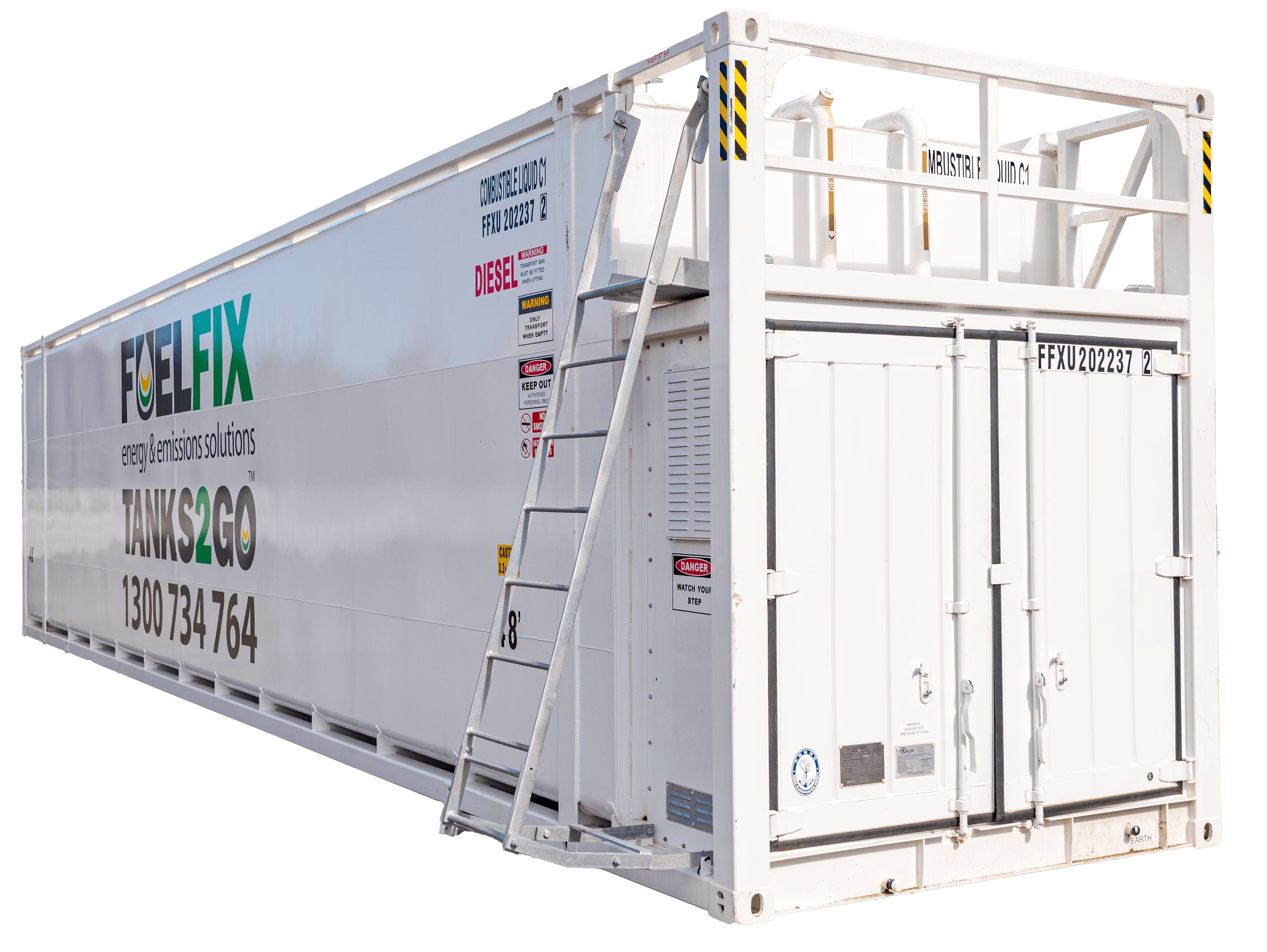

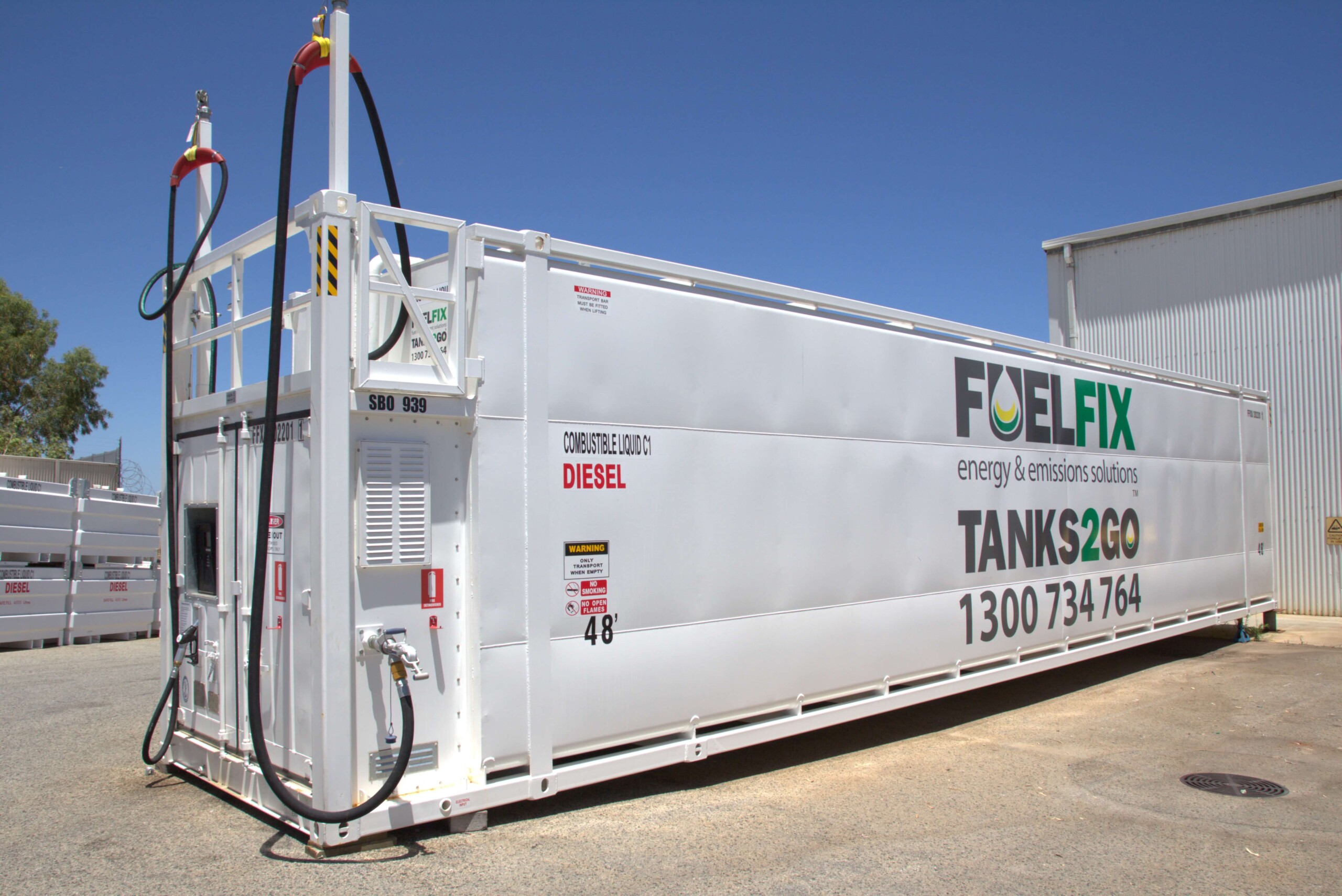

95FF Self Bunded Fuel Tank

Description

• Self-bunded or double wall design
• Overfill protection supplied with mechanical shutoff and audible / visual alarm
• Free to air vent with weather cap
• Fluid level dipstick
• Antisyphon valve installed

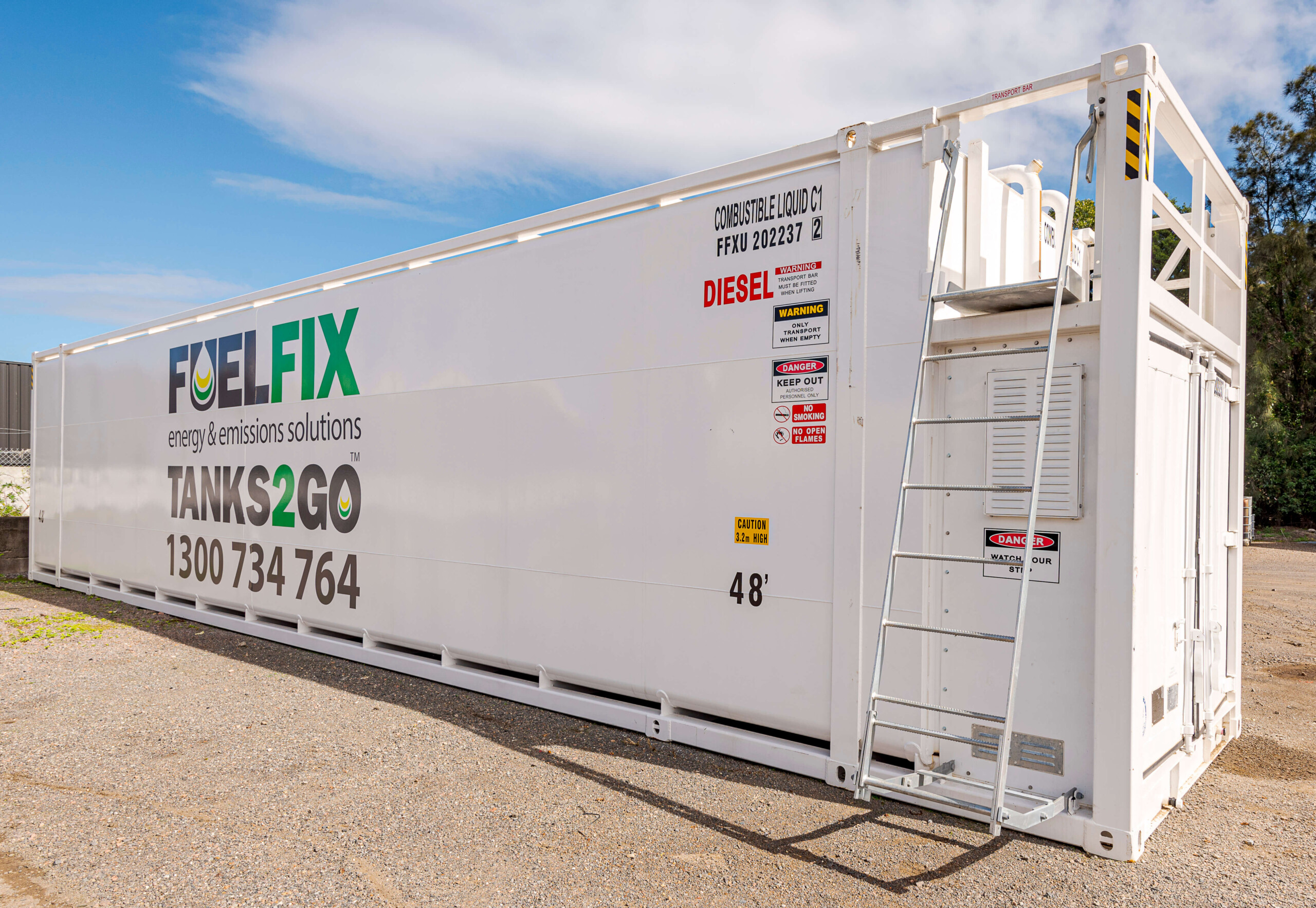

• Fixed ladder at front of tank
• Tank floor has fall to front for water collection

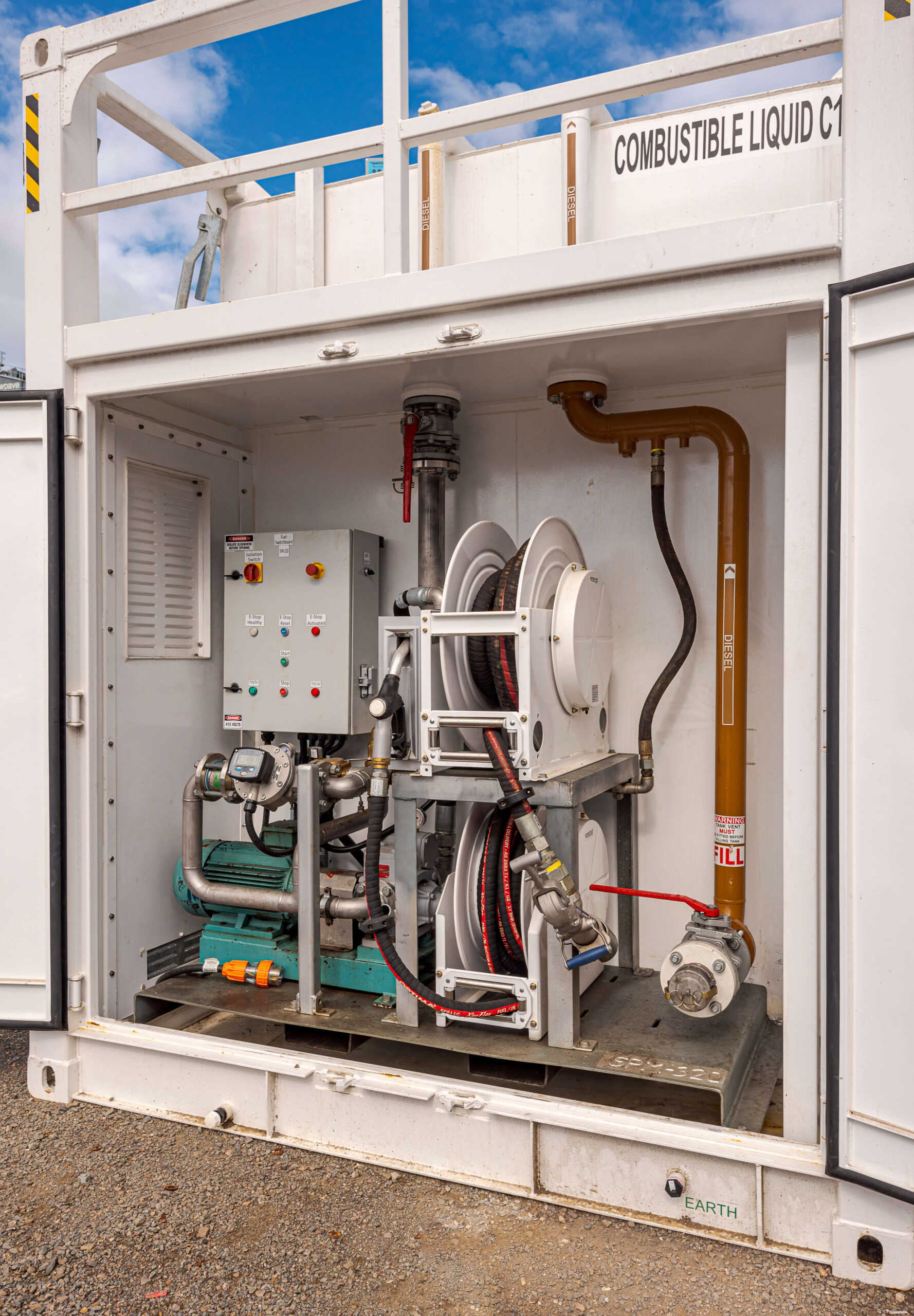

• Bunded (spill contained) pump bay housing with removable ventilation panels
• Front mounted security doors
• Statutory signage
• Under tank visibility

Specifications

Capacity 94,500L

Dimensions H 3,200mm W 2,438mm L 14,630mm

Weight (Empty/Full) 15,880kg / 92,184KG

• Safe Fill: 89,770 litres
• 80nb Camlock male tanker hose filler with dust cap connect
• Tanker fill point supplied with 80nb full bore
• Fire safe flanged ball valve and wafer style non-return valve
• Container corner castings
• Statutory access manway
• Permanent ladder and platform
• Water evacuation pipe
• Interstitial dipstick
• Interstitial pressure vent
• Marine grade polyurethane paint (white in colour)
• Approvals: UL142, ULCS601, AS1940, AS1692, AS1657
