200,000L Self Bunded Tank

With its 200,000-litre capacity, this unique fuel storage solution meets the most demanding operational fuel needs. A proven performer in the harshest mine-site environments, the tank can be deployed and installed by our highly experienced team, no matter how remote.

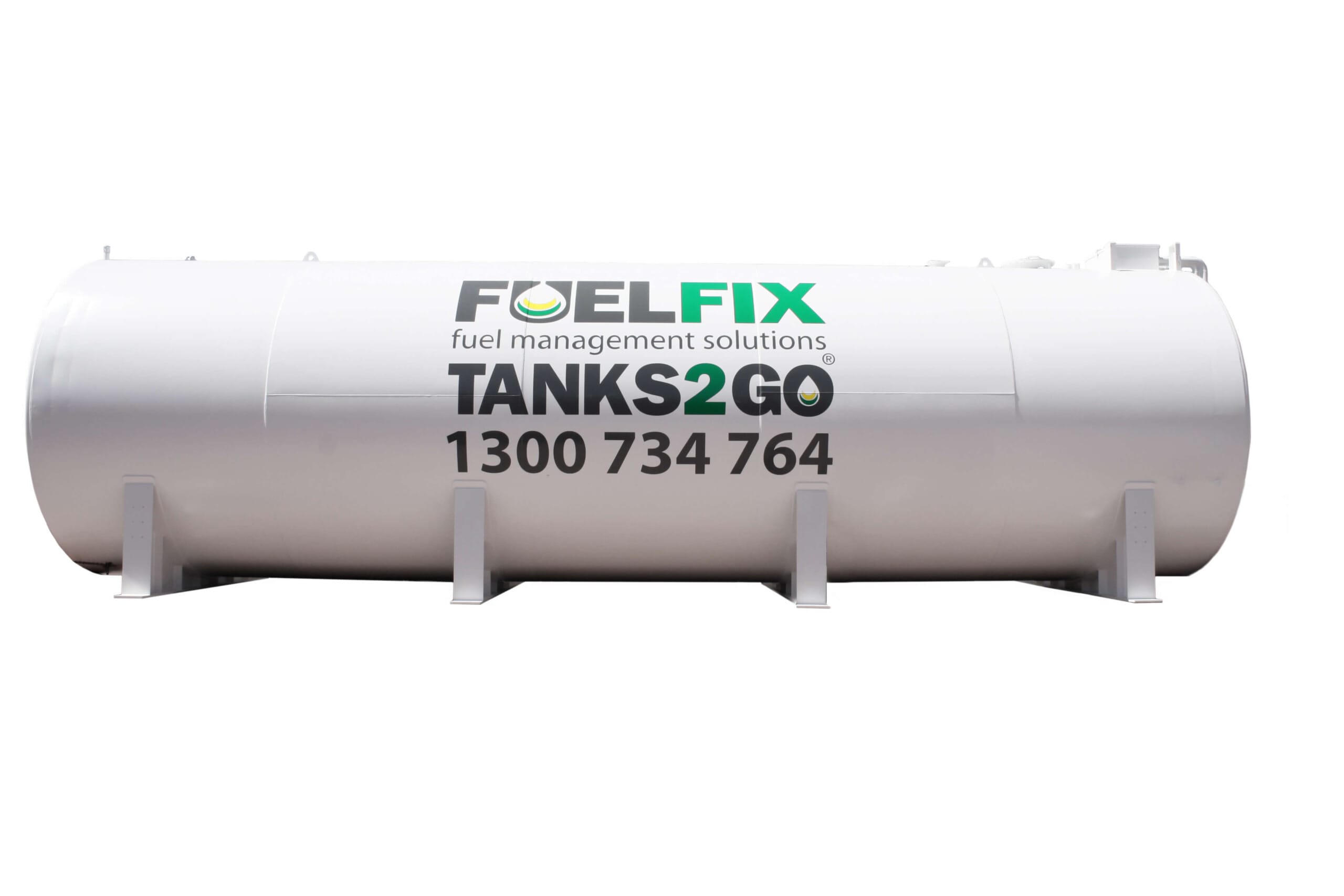

T200 Self Bunded Tank

200,000L Self Bunded Tank

  • Largest mobile self-bunded fuel tank in the market
  • Best suited for high volume operations with large deliveries to maximise logistics savings
  • Heavy duty, proven performer tank within the mining industry for over a decade

Product Features

  • Movable: Safe handling and transportation is easily achieved using a crane and flat deck. Locally manufactured in Australia. Modular design to reduce on-site installation time.
  • Accessible: Tanker unloading and dispensing bays can be located at opposite ends of the tank to provide safer and more efficient on-site traffic management flows. Tanker unloading and dispensing equipment can be fully customised.
  • Efficient: Pioneered by Fuelfix, the T200 is the largest self-bunded fuel tank on the market and has a proven track record of providing an innovative and cost-effective solution for high throughput refuelling locations. The T200’s capacity enables cost effective full tanker load deliveries and enhances fuel supply security risk for remote locations. Installing at in-pit mining locations significantly enhances heavy vehicle productivity while also reducing running costs.
  • Environment-Friendly: Secondary containment of the T200 tank is compliant with AS1940 (2017), with associated equipment located on Fuelfix Spill Grates for bunding purposes.
Movable
icon repair Accessible
icon speed Efficient
icon eco friendly Environment Friendly
Product Specification
215,020L
200,000L
Height 4,908 mm
Width 4,340 mm
Length 15,100 mm
Empty 29,400 kg
Full 197,400 kg
AS1940
AS1692
AS1657
2 x 9 kg dry powder extinguisher
Vent pipe and calibrated dipstick,
100 mm fill line with mechanical overfill prevention valve
100 mm fill line with mechanical overfill prevention valve
100 mm suction line with antisyphon valve and audible overfill alarm
Ladder, ladder cage (where applicable) and platform built to AS1657
Various electric and diesel-powered tanker unloading and dispensing solutions to suit all applications
Fuelfix fuel management system and tank gauging system (or customer nominated system)
Spill Grates for truck unloading and dispensing bays
1,000L generator day tank
Emergency Shower and Eyewash Station
NMI approved meter
