Hybrid Lighting Tower 270,000 (HL270)


The Fuelfix 270,000 Lumens Hybrid Lighting Tower (HL270) is a cost-effective industrial outdoor lighting solution ideal for mine sites, large construction sites,
and civil works.
The HL270 provides lighting for an area of 50,000m2 with access area lighting for 6,470m2 and general area lighting for 1,540m2.

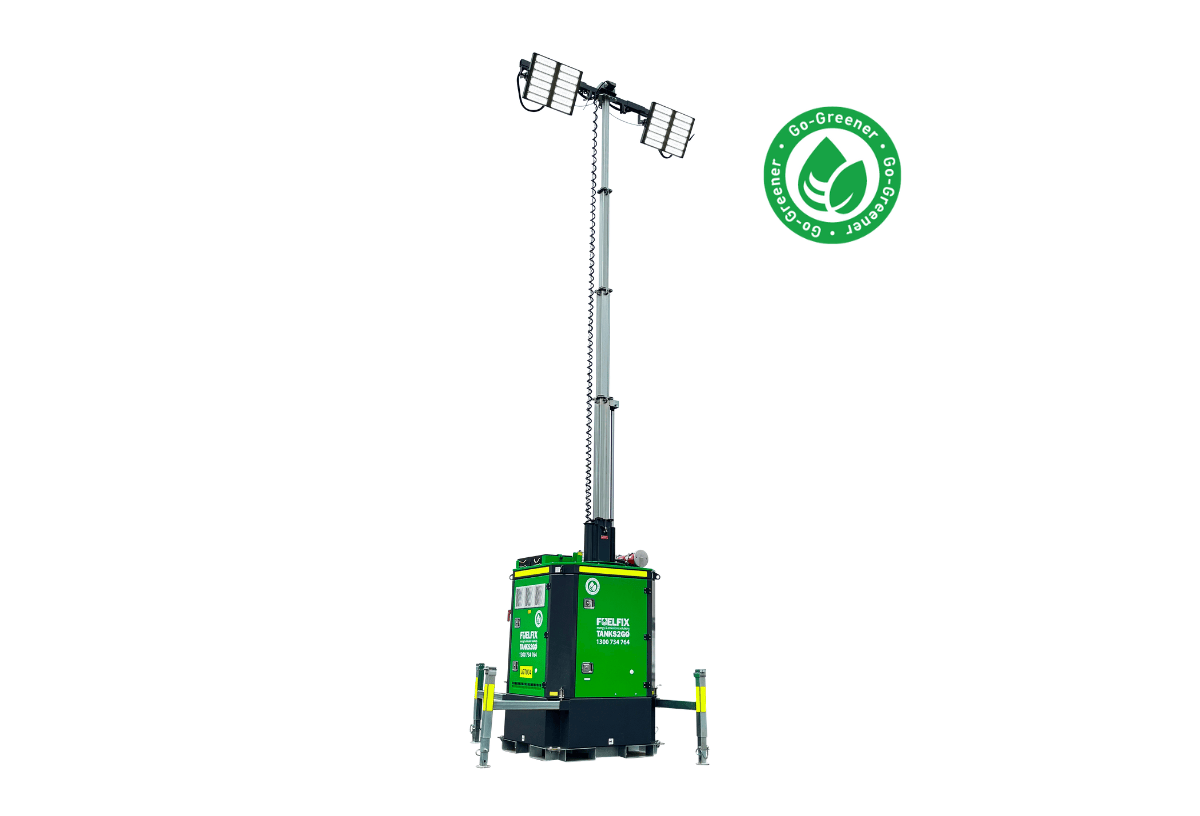

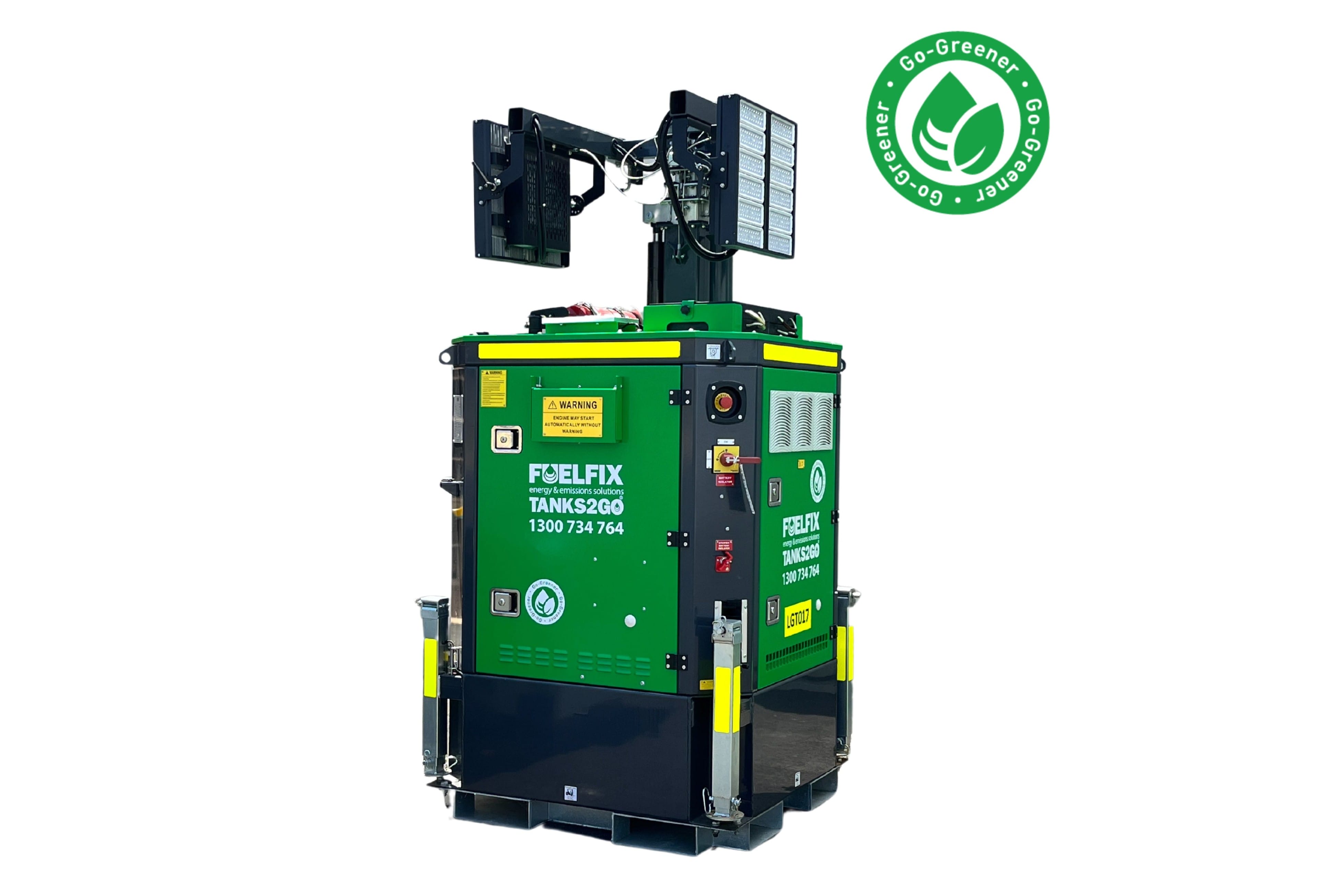

Dimensions H 2550mm (stowed) - 7550mm (deployed) W 1300mm (stowed) - 2460mm (deployed) L 1500mm (stowed) - 2500mm (deployed)
Weight (Empty) 1500kg
  • Highly-efficient
    This hybrid diesel powered battery system lowers fuel consumption while reducing engine runtime by up to 50%.
    This in turn increases runtime to up to 280 hours per fill.
  • Durable Outdoor Lighting Solution
    Robust cube design suitable for mine applications
    Australian weatherproof (from 0 to 50°C)
  • Environmentally Friendly
    Hybrid diesel powered battery system
    Greenhouse gas emissions reductions by up to 50%
  • Smart features
    Smart Victron inverter automatically switches between diesel and battery power to maximise reliability and minimise fuel usage
    Optional 4/5G connectivity for remote monitoring

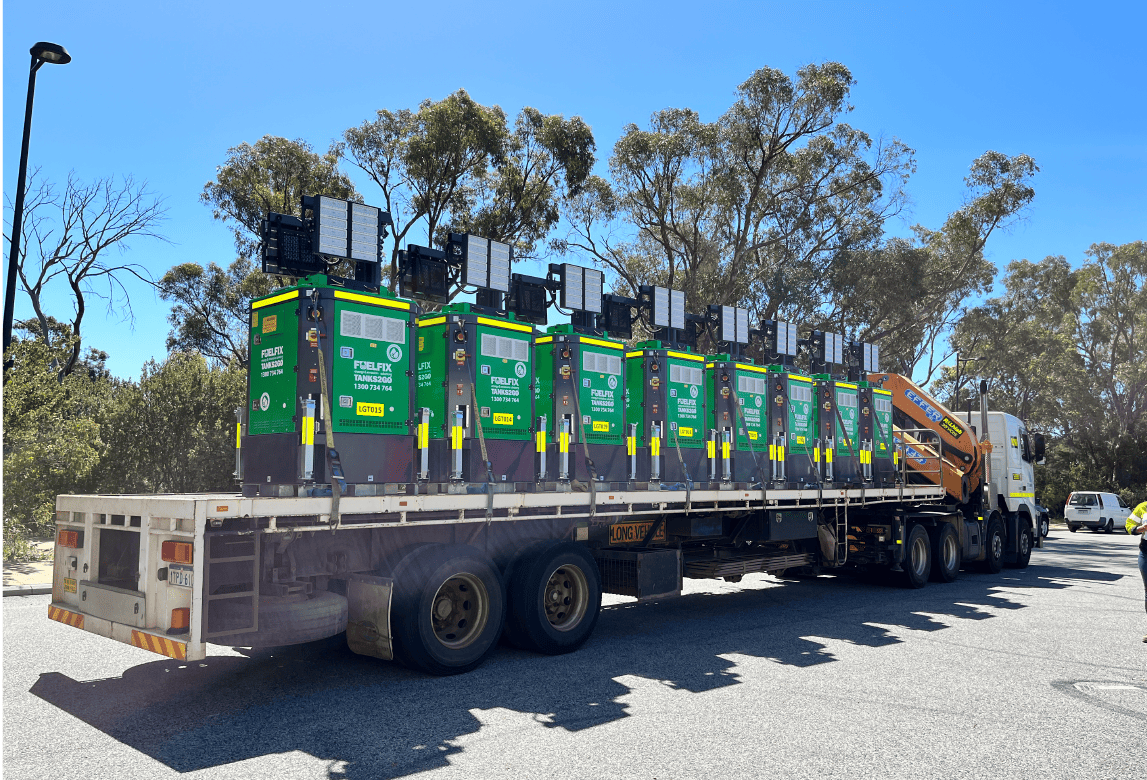

  • Ease of transport
    Compact shape with forklift pockets to allow safe and easy transport in the harshest of environments
